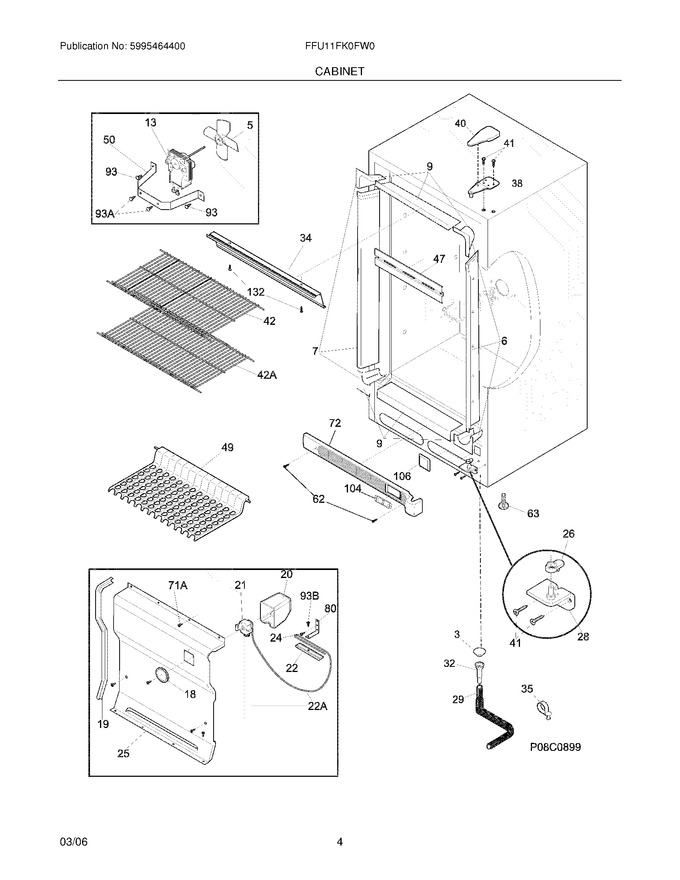

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604400		Breaker Kit W/corners		Appelez-nous	-
7	216603900		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603400		Breaker Kit W/corners,22.13`` Long ,top Or Bottom		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
19	216204900		Gasket, Evap Cover				$ 51.45
20	216967201		Cover,temp Control   (Replaces: 216967200)				$ 15.18
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216820100		Cover,evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816220		Shield-light		Appelez-nous	-
35	216629700		Clip		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	216936800		Screw-hinge,12-24x.700 Hwh		Appelez-nous	-
42	216546200		Shelf,14.50 X 23.88 Wh,14.50x23.88 ,white		Appelez-nous	-
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
49	216937600		Trivet				$ 83.50
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036802		Grille/kickplate,28`` ,white				$ 48.46
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
104	216926700		Shield				$ 42.06
104	216948401		Light,signal,assy W/bracket				$ 55.24
106	216926301		Plug,square		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
42A	216641000		Shelf,wire		Appelez-nous	-
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
93B	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F21	216788000		Control-temperature				$ 163.30
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216795203		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
