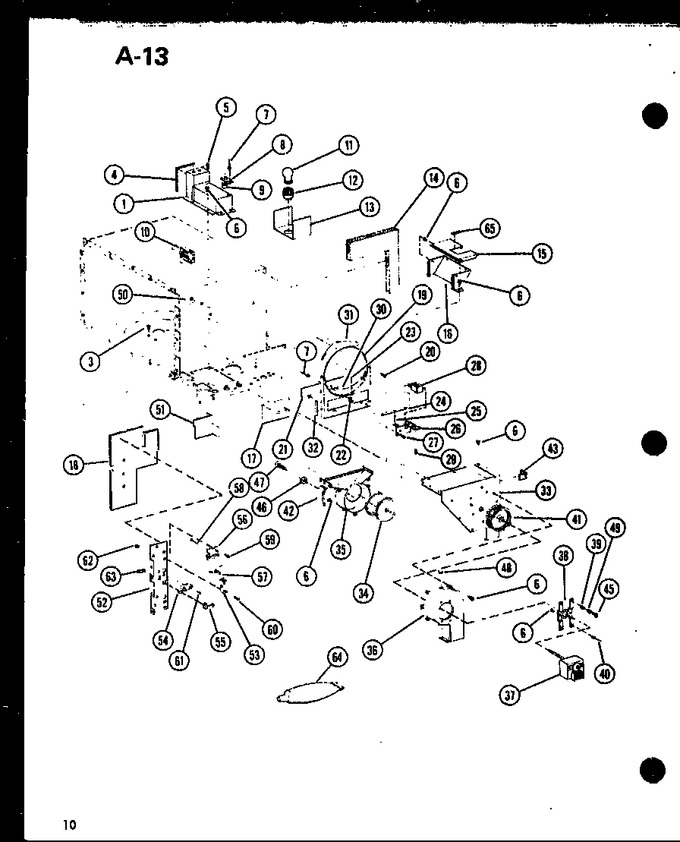

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8825603 | Exhust Duct |
|
- | |||||
| 3 | M0234015 | Screw |
|
- | |||||
| 4 | B8321904 | Gasket, U-channel |
|
- | |||||
| 5 | A1018104 | Gasket |
|
- | |||||
| 6 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 7 | A4539601 | Pop Rivet |
|
- | |||||
| 8 | B5725102 | Clip |
|
- | |||||
| 9 | B5665818 | Thermal Cut Out Kit |
|
- | |||||
| 10 | C8845402 | Switch Jack |
|
- | |||||
| 11 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 12 | A4400701 | Socket, Oven Light |
|
- | |||||
| 13 | A1021401 | Shield Bulb |
|
- | |||||
| 14 | B8306902 | Insul-rt Oven |
|
- | |||||
| 15 | C8825301 | Cover, Duct |
|
- | |||||
| 16 | C8825201 | Duct, Bl Imput |
|
- | |||||
| 17 | B8323501 | Baffle, Transformer |
|
- | |||||
| 18 | B8307002 | Insul-rt Oven |
|
- | |||||
| 19 | C8827401 | Air Deflect Wld |
|
- | |||||
| 20 | A1020102 | Shoulder Screw |
|
- | |||||
| 21 | B5796801 | Door-oven Air |
|
- | |||||
| 22 | B8305801 | Bracket-sol Arm |
|
- | |||||
| 23 | M1200104 | Pin |
|
- | |||||
| 24 | B8305901 | Solenoid Arm |
|
- | |||||
| 25 | M1200101 | Roll Pin |
|
- | |||||
| 26 | C8870001 | Mtg Bracket |
|
- | |||||
| 27 | M0213815 | Screw |
|
- | |||||
| 28 | B5682103 | Solenoid, Door Locking |
|
- | |||||
| 29 | M0201414 | Screw |
|
- | |||||
| 30 | B8321901 | Gasket, U-channel |
|
- | |||||
| 31 | B8321902 | Gasket, U-channel |
|
- | |||||
| 32 | B8321903 | Gasket, U-channel |
|
- | |||||
| 33 | D7404701 | Bracket-scroll Mtg |
|
- | |||||
| 34 | C3670805 | Blower Wheel |
|
- | |||||
| 35 | C8826801 | Scroll Wld |
|
- | |||||
| 36 | C8825403 | Scroll |
|
- | |||||
| 37 | B5736104 | Motor |
|
- | |||||
| 38 | B5795401 | Mtr Mnt |
|
- | |||||
| 39 | YA0381501 | Clip, Waterline |
|
- | |||||
| 40 | A4539609 | Pop Rivet |
|
- | |||||
| 41 | C3670806 | Blower Wheel |
|
- | |||||
| 42 | B8307402 | Insul-blower Scroll |
|
- | |||||
| 43 | B8306501 | Clip |
|
- | |||||
| 45 | M0227303 | Screw |
|
- | |||||
| 46 | M0272605 | Washer |
|
- | |||||
| 47 | M0202642 | Screw |
|
- | |||||
| 48 | M0310005 | Plug |
|
- | |||||
| 49 | A0381401 | Eyelet K |
|
- | |||||
| 50 | A3275701 | Nut-decorative |
|
- | |||||
| 51 | B8323001 | Baffle |
|
- | |||||
| 52 | D7428201 | Bracket-sw Mtg |
|
- | |||||
| 53 | C8842001 | Switch, Limit |
|
- | |||||
| 54 | B8306602 | Limit Switch |
|
- | |||||
| 55 | C8840401 | Sleeve, Door Guide |
|
- | |||||
| 56 | C8829603 | Door Catch |
|
- | |||||
| 57 | B8305701 | Lever |
|
- | |||||
| 58 | A3182601 | Pin Bell-crank |
|
- | |||||
| 59 | M0213815 | Screw |
|
- | |||||
| 60 | M0202521 | Screw |
|
- | |||||
| 61 | M0229005 | Screw K |
|
- | |||||
| 62 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 63 | M0289504 | Nut A |
|
- | |||||
| 64 | M0275537 | Sealer Rtv-clear |
|
- | |||||
| 65 | A3030301 | Gasket (inch) |
|
- |
