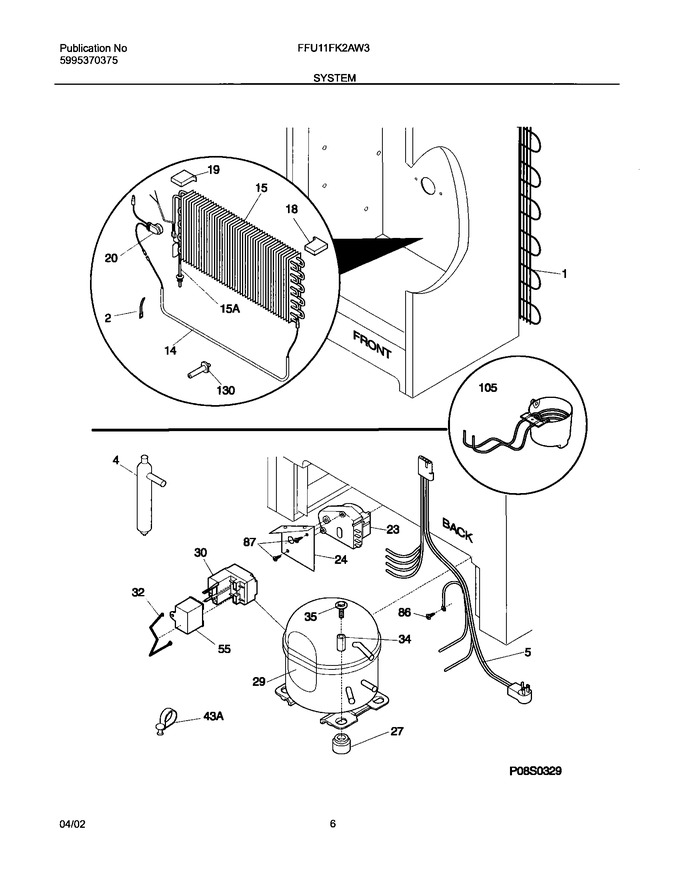

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 14 | 5304496687 | Heater-defrost (Replaces: 216740000) |
|
$ 97.81 | |||||
| 15 | 297414800 | Evaporator (Replaces: 216737400) |
|
$ 145.30 | |||||
| 18 | 216727600 | Insulator-evap,styrofoam |
|
- | |||||
| 19 | 216727700 | Insulator-evap,styrofoam |
|
- | |||||
| 20 | 297216600 | Thermostat-defrost (Replaces: 216731000) |
|
Immediately | $ 27.52 | ||||
| 24 | 08016580 | Bracket |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 29 | 216511100 | Compressor,w/o Electricals |
|
- | |||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 87 | 08037849 | Screw |
|
$ 8.98 | |||||
| 105 | 216854002 | Cup-drain |
|
- | |||||
| 130 | 216486800 | Support-evaporator |
|
- | |||||
| 15A | 297348500 | Heat Exchanger (Replaces: 216565700) |
|
$ 112.69 | |||||
| 43A | 216629700 | Clip-harness |
|
- | |||||
| F1 | 5300123788 | Condenser |
|
$ 635.80 | |||||
| F23 | 5304518034 | Timer-defrost (Replaces: 216744400) |
|
Immediately | $ 57.55 | ||||
| F30 | 216649301 | Controller |
|
- | |||||
| F5 | 216821700 | Harness-main |
|
- | |||||
| F55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 |
