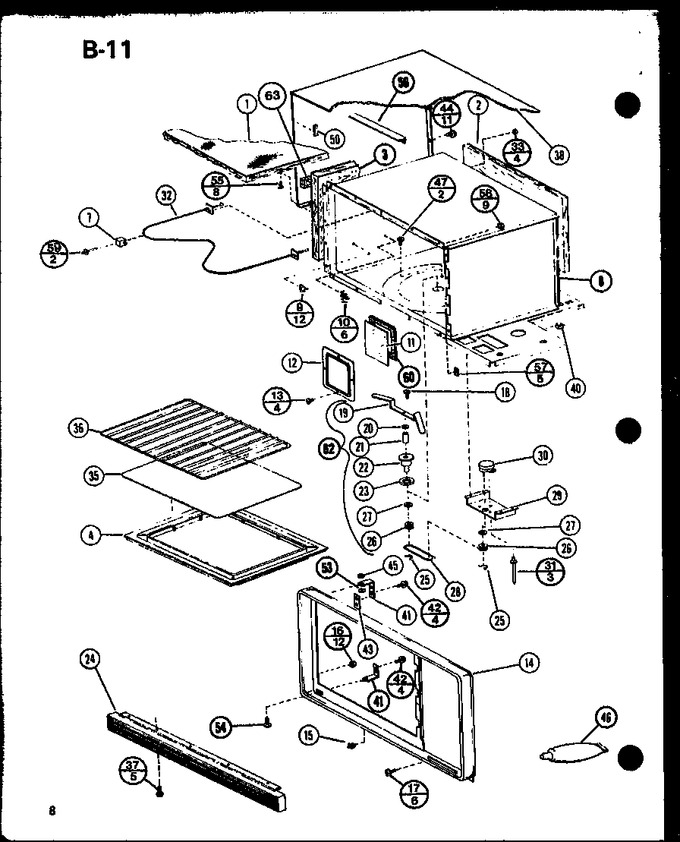

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8307302		Insul-oven Top		Appelez-nous	-
2	B8307202		Insul-back Oven		Appelez-nous	-
3	B8307102		Insul-lft Oven		Appelez-nous	-
4	D7428101		Tray Support (small)		Appelez-nous	-
7	B5797402		Heater Svpts K		Appelez-nous	-
8	D7432008		Oven Weld K		Appelez-nous	-
9	B8359201		Support K		Appelez-nous	-
10	B8359301		Support K		Appelez-nous	-
11	B8304301		Glass,oven Light		Appelez-nous	-
12	C8840302		Bracket Oven Light		Appelez-nous	-
13	M0211516		Screw A K		Appelez-nous	-
14	C8837503		Bezel		Appelez-nous	-
15	A1018401		Clip Exhaust Duct		Appelez-nous	-
16	M0282901		Nut, Self Thread		Appelez-nous	-
17	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
18	M0202515		Screw A		Appelez-nous	-
19	B8302701		Antenna A		Appelez-nous	-
20	M0272503		Washer		Appelez-nous	-
21	B8357201		Shaft-antenna A		Appelez-nous	-
22	A1005502		Antenna Dr Coupler A		Appelez-nous	-
23	A1005403		Bearing A		Appelez-nous	-
24	D7414401		Grille		Appelez-nous	-
25	A1021601		Retainer Ring A		Appelez-nous	-
26	YA0381501		Clip, Waterline		Appelez-nous	-
27	M0270535		Washer		Appelez-nous	-
28	A1021701		O Ring		Appelez-nous	-
29	B8310901		Bracket		Appelez-nous	-
30	B8308302		Motor		Appelez-nous	-
31	A4539601		Pop Rivet		Appelez-nous	-
32	C8830502		Heater Broil Element		Appelez-nous	-
33	M0282005		Nut K				$ 7.07
35	C8841202		Oven Tray (large)		Appelez-nous	-
36	D7622101		Oven Rack K		Appelez-nous	-
37	M0217514		Screw		Appelez-nous	-
38	D7414501		Wrapper-bent		Appelez-nous	-
40	M0110505		Clip-cable		Appelez-nous	-
41	B8300301		Hinge		Appelez-nous	-
41	B8300101		Hinge		Appelez-nous	-
42	WP489128		Screw   (Replaces: M0253516)				$ 9.79
43	B8314402		Shim		Appelez-nous	-
44	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
45	M0274046		Washer		Appelez-nous	-
45	M0274032		Washer Non-metal		Appelez-nous	-
46	M0910003		Adhesive Melt Pint		Appelez-nous	-
47	M0234016		Screw		Appelez-nous	-
50	A3030301		Gasket (inch)		Appelez-nous	-
53	M0274045		Washer		Appelez-nous	-
54	M0258901		Screw		Appelez-nous	-
55	M0259318		Screw Torx		Appelez-nous	-
56	B8343901		Stiffner, Wrapper		Appelez-nous	-
57	B8308801		Spring Fastener		Appelez-nous	-
58	M0282901		Nut, Self Thread		Appelez-nous	-
59	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
60	C8912501		Insulator-lt Brkt		Appelez-nous	-
62	B8324202		Antenna Assembly		Appelez-nous	-
63	B8360102		Insulation		Appelez-nous	-
