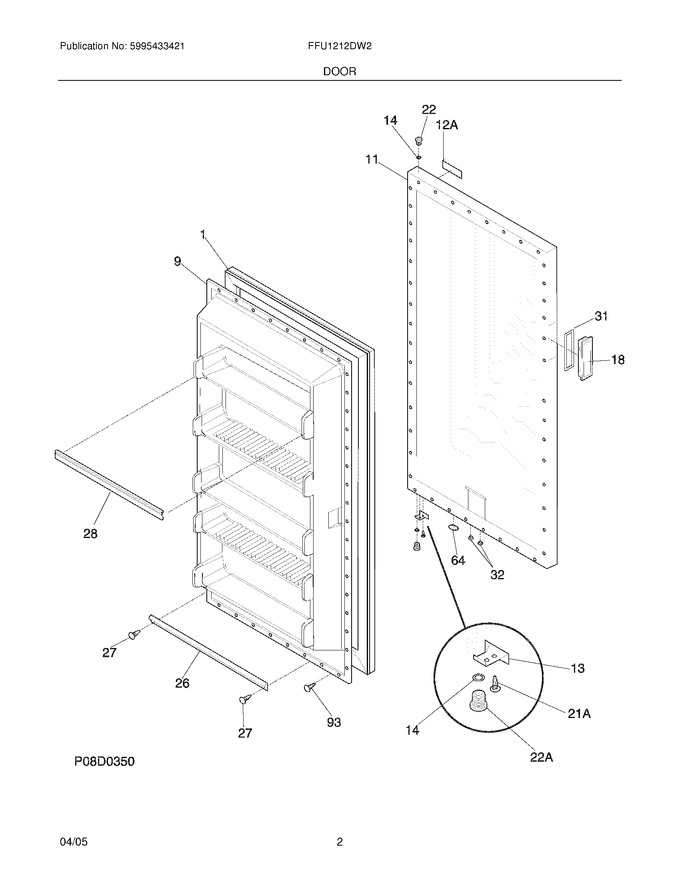

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507202		Gasket-door,white   (Replaces: 216522303)				$ 188.19
9	216527412		Panel-inner Door,frzr				$ 160.70
11	216565416		Panel-outer Door,white		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	297034201		Handle,recessed ,black				$ 14.12
22	216970802		Bearing,hinge ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524300		Gasket,secondary				$ 27.56
27	5303212828		Clip,panel Mtg				$ 16.63
28	216951601		Rack-door,(4)				$ 44.68
31	08009392		Gasket, White		Appelez-nous	-
32	5309950074		Valve,breather ,door Base				$ 12.48
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
12A	216892802		Nameplate				$ 6.15
21A	08005520		Screw,door Stop Mtg ,4.0 X 0.7-19.7 ,flat Hd,metric		Appelez-nous	-
22A	297006800		Bearing-hinge				$ 12.29
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
