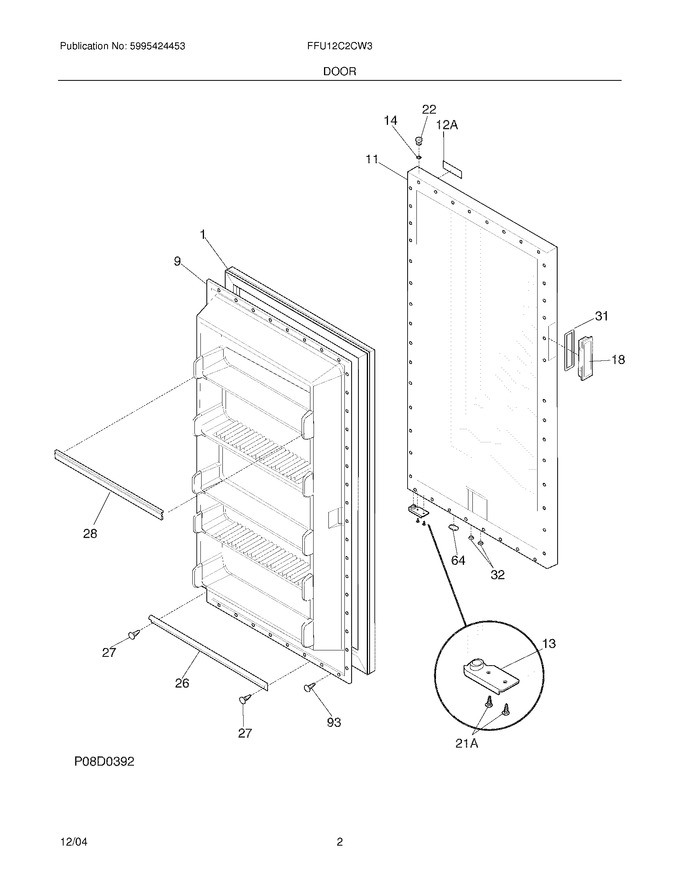

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507202 | Gasket-door,white (Replaces: 216522303) |
|
$ 188.19 | |||||
| 9 | 216527412 | Panel-inner Door,frzr |
|
$ 160.70 | |||||
| 11 | 216565413 | Panel-outer Door,white |
|
- | |||||
| 13 | 216929100 | Door Stop |
|
- | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 18 | 216140200 | Handle, Recessed, White |
|
- | |||||
| 22 | 5303925197 | Bearing,hinge ,top |
|
$ 23.73 | |||||
| 26 | 216524300 | Gasket,secondary |
|
$ 27.56 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 28 | 216951601 | Rack-door,(4) |
|
$ 44.68 | |||||
| 31 | 08009392 | Gasket, White |
|
- | |||||
| 32 | 5309950074 | Valve,breather ,door Base |
|
$ 12.48 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 12A | 216892800 | Nameplate |
|
- | |||||
| 21A | 08005520 | Screw-door Stop |
|
- |
