SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet/control/shelves

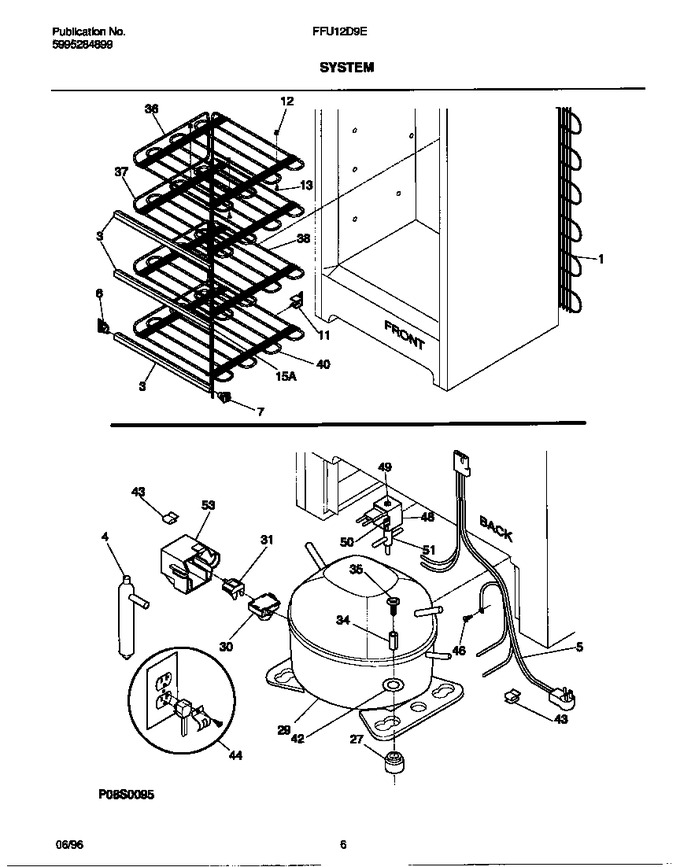

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
3	5304509722		Trim-shelf, Evaporator   (Replaces: 216097800)				$ 28.20
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216466300		Harness-electrical		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216225600		Support-rear Shelf		Appelez-nous	-
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
15	216466100		Heat Exchanger Assy		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304443412		Compressor, Service   (Replaces: 5303925314)				$ 856.23
30	216347700		Starter, Ptc		Appelez-nous	-
31	216100105		Overload Protector				$ 137.92
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Lnd Hex Sems, 1/4-28 Unfx, Compressor				$ 10.34
36	216069700		Grid-top Evaporator		Appelez-nous	-
37	216464100		Shelf-top Evaporator		Appelez-nous	-
38	216069900		Shelf-middle Evaporator		Appelez-nous	-
40	216070000		Shelf-bottom Evaporator				$ 99.23
42	5303298960		Spacer, Compressor		Appelez-nous	-
43	09950610		Clip		Appelez-nous	-
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	5303297422		Wire-ground, Solenoid		Appelez-nous	-
51	216468100		Valve, Formed		Appelez-nous	-
53	216347800		Cover, Compressor		Appelez-nous	-
*50963	5303208622		Clip Grounding		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
