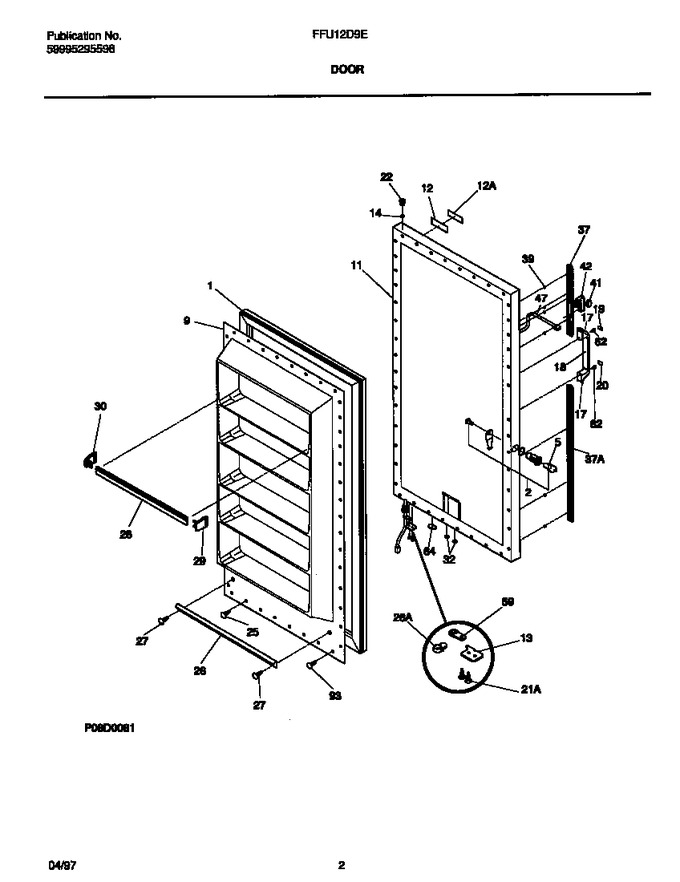

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206240		Gasket Door				$ 287.18
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216048614		Panel-inner Door, White		Appelez-nous	-
11	216411308		Panel-outer Door, W/handle, Elect, Foam Insul, White		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	216315100		Nameplate		Appelez-nous	-
13	5303271076		Door Stop				$ 16.30
14	5303313518		Washer, Sealing		Appelez-nous	-
17	216087400		End Cap-white (2)				$ 43.81
18	216087700		Handle, White		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209000		Insert-handle,bottom		Appelez-nous	-
21	5303271077		Screw,flat Head ,1/4-20 ,door Stop/hng				$ 8.82
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	5303300817		Gasket-secondary		Appelez-nous	-
26	216470700		Bearing-hinge,closer Ramp		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
28	216370800		Rack-shelf, Wide, White		Appelez-nous	-
29	216334300		End Cap-wide, Lh		Appelez-nous	-
30	216334200		End Cap-wide, Rh				$ 39.80
32	5309950074		Valve-breather, Door				$ 12.48
37	216464400		Trim-door Handle,top		Appelez-nous	-
37	216463800		Trim-door Handle, Bottom		Appelez-nous	-
39	08016809		Fastener,door Strip		Appelez-nous	-
41	216371900		Lens-food Care Monitor		Appelez-nous	-
42	216083700		Monitor, Food Care		Appelez-nous	-
47	216290400		Harness-wire, Electrical, Door		Appelez-nous	-
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
64	216403700		Plug-button, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*55800	5303917276		Insulation				$ 330.91
