SELECT A DIAGRAM
01 - Cover

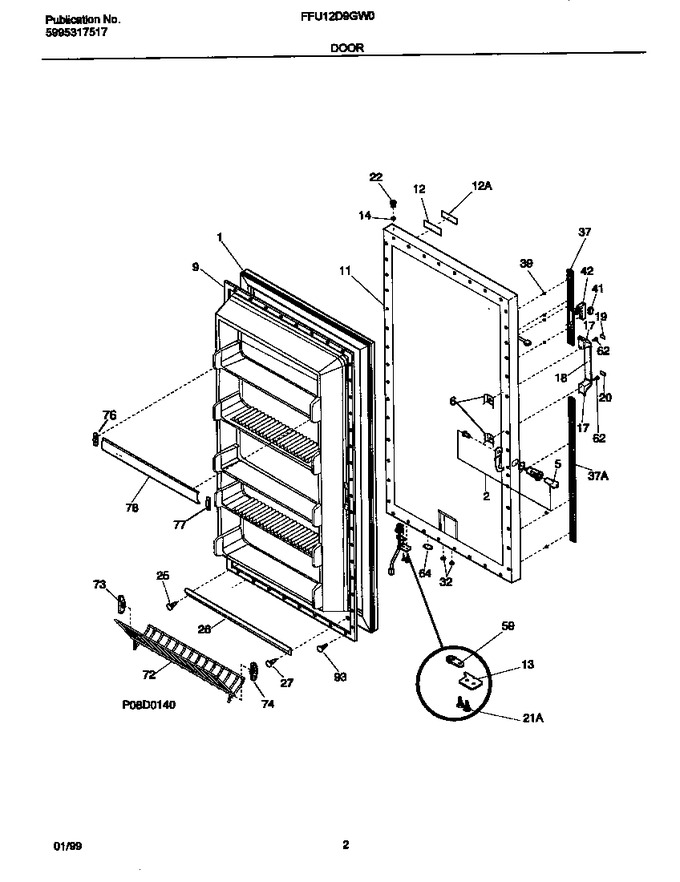

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507202 | Gasket-door,white (Replaces: 216522303) |
|
$ 188.19 | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 5 | 297147700 | Key, Lock (Replaces: 216388700) |
|
Immediately | $ 7.57 | ||||
| 6 | 218990001 | Screw-anchor,8-18 (Replaces: 5300158222) |
|
$ 16.30 | |||||
| 9 | 216527406 | Panel-inner Door,frzr |
|
- | |||||
| 11 | 5303925464 | Panel-outer Door,white |
|
- | |||||
| 12 | 218364004 | Frame-nameplate, White |
|
- | |||||
| 12 | 216315100 | Nameplate |
|
- | |||||
| 13 | 5303271076 | Door Stop |
|
$ 16.30 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 17 | 216087400 | End Cap-white (2) |
|
$ 43.81 | |||||
| 18 | 216518000 | Handle,center |
|
- | |||||
| 19 | 216208900 | Insert, Handle Top |
|
- | |||||
| 20 | 216209000 | Insert-handle,bottom |
|
- | |||||
| 21 | 5303271077 | Screw,flat Head ,1/4-20 ,door Stop/hng |
|
$ 8.82 | |||||
| 22 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 26 | 216524300 | Gasket,secondary |
|
$ 27.56 | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 37 | 216464400 | Trim-door Handle,top |
|
- | |||||
| 37 | 216463800 | Trim-door Handle, Bottom |
|
- | |||||
| 39 | 08016809 | Fastener,door Strip |
|
- | |||||
| 41 | 216371900 | Lens-food Care Monitor |
|
- | |||||
| 42 | 216083700 | Monitor, Food Care |
|
- | |||||
| 47 | 216534900 | Harness-wire |
|
- | |||||
| 59 | 5303271072 | Bearing-door,closer Ramp |
|
- | |||||
| 62 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 62 | 131420300 | Screw, Cr Truss Head, 8-18ab X 0.750 |
|
$ 13.46 | |||||
| 64 | 216403700 | Plug-button, Base Door |
|
$ 58.12 | |||||
| 72 | 216514101 | Shelf-tilt Out,wire |
|
- | |||||
| 73 | 216513900 | End Cap,tiltout ,lh |
|
$ 48.86 | |||||
| 74 | 216514000 | End Cap,tiltout ,rh |
|
$ 48.05 | |||||
| 76 | 216521800 | Support Psuedo Bin,lh |
|
$ 24.05 | |||||
| 77 | 216522100 | Support Psuedo Bin,rh |
|
$ 24.20 | |||||
| 78 | 216579601 | Rack-shelf |
|
- | |||||
| 89 | 216206200 | Bezel-nameplate,defrost |
|
- | |||||
| 90 | 5303297123 | Screw, Th, 8-32 X 2-1/2 |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8 |
|
- | |||||
| *76200 | 216485600 | Label-frozen Food |
|
- |
