View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control System
02 - Oven

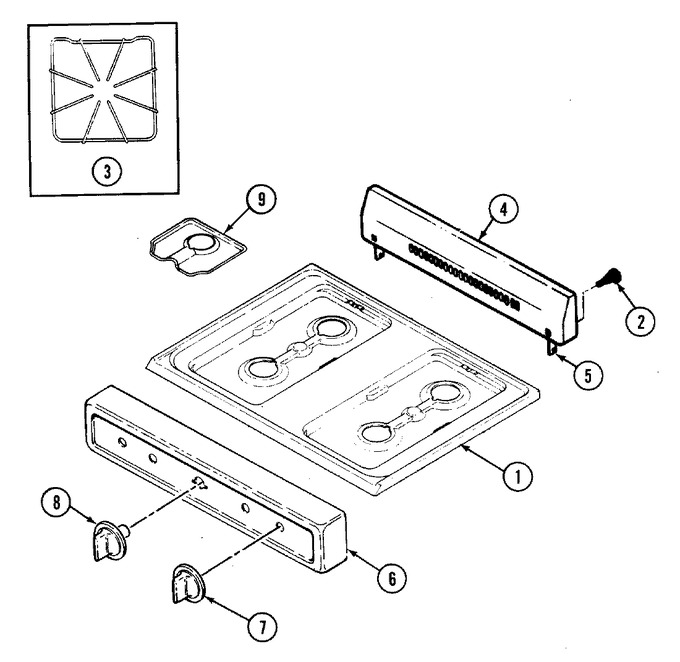

03 - Top Assy./control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288566 | Top, Main (wht) (Replaces: 2001F098-81) | 10 |
|
$ 2.17 | ||||
| 2 | 8010P069-60 | Spacer, Hinge (main Top) | 10 |
|
$ 8.57 | ||||
| 3 | 2003W026-00 | Grate (blk) | 10 |
|
- | ||||
| 4 | 7719P008-60 | Plate, Name | 10 |
|
- | ||||
| 4 | 2601W349-09 | Backguard | 10 |
|
- | ||||
| 5 | 3801F243-51 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 5 | 3801F242-51 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 6 | 7101P329-60 | Screw | 10 |
|
- | ||||
| 6 | 2616F085-09 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 7 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P062-60) | 10 |
|
$ 25.06 | ||||
| 8 | WP74002419 | Knob, Thermostat (blk) (Replaces: 7731P079-60) | 10 |
|
$ 18.54 | ||||
| 9 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 10 |
|
$ 95.86 | ||||
| 10 | 16002079 | Guide, Quick Ref - Admiral | 10 |
|
- | ||||
| 10 | 8113P042-60 | Manual, Use & Care | 10 |
|
- |
