SELECT A DIAGRAM

01 - Cover


03 - Door

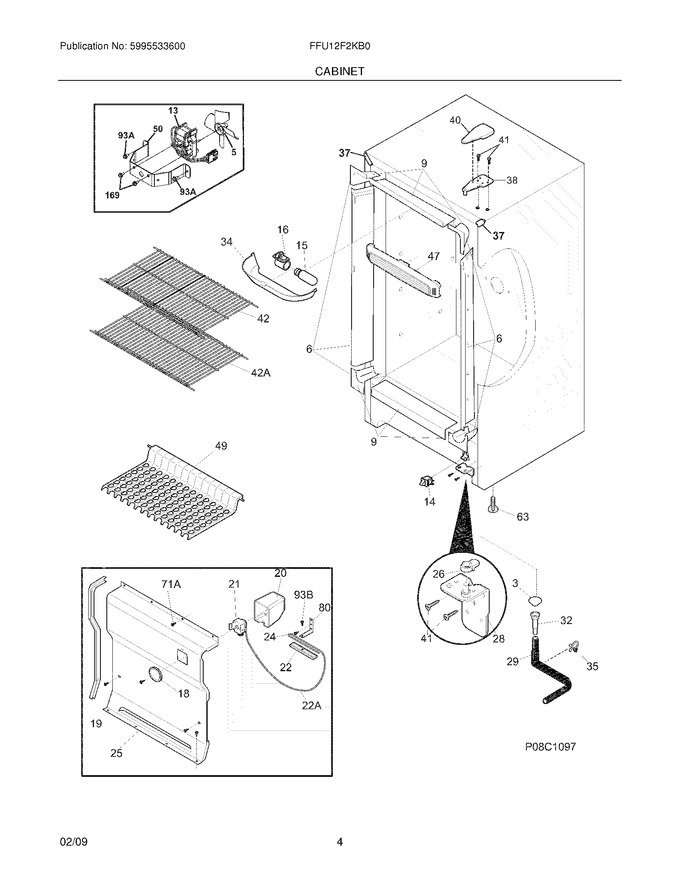

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200300		Breaker Kit W/corners,no Lock Slot				$ 39.69
9	297200200		Breaker Kit W/corners,28`` ,top And Bottom				$ 45.32
14	216822900		Switch,light/lamp ,black ,ramp   (Replaces: 216998100)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139500		Socket,light/lamp				$ 18.08
18	216707200		Knob,temp Control				$ 44.10
19	216204900		Gasket, Evap Cover				$ 51.45
20	216967201		Cover,temp Control   (Replaces: 216967200)				$ 15.18
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
25	297098650		Cover,evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	297283900		Hinge-bottom,stepped Pin			Immediately	$ 54.23
29	5304510365		Hose-drain   (Replaces: 216313504)				$ 13.01
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184400		Shield-light				$ 21.16
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918607		Trim-cabinet Corner,black ,(2)   (Replaces: 241611303)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164401		Cover-upper Hinge,black				$ 13.39
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
42	297120000		Shelf,12.50x23.88 ,white		Appelez-nous	-
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
49	216937600		Trivet				$ 83.50
50	216394050		Bracket,fan Motor Mount				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
80	06594601		Bracket, Control				$ 17.64
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
42A	297119900		Shelf,14.50 X 23.88 ,white ,(2)		Appelez-nous	-
71A	297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
93B	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F21	216788000		Control-temperature				$ 163.30
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	297164600		Bracket,lh Leg Levelor				$ 4.45
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	297164601		Bracket,rh Leg Levelor				$ 4.45
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297221301		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
