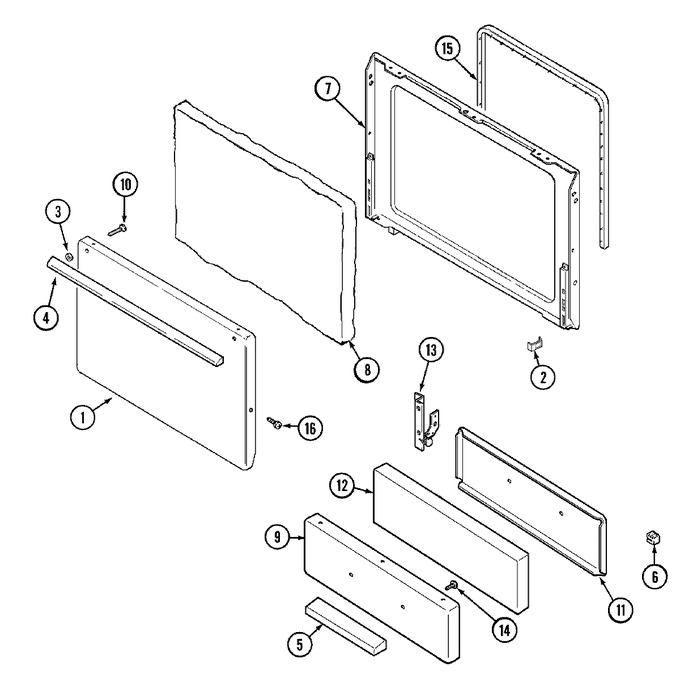

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F096-74		Panel, Door (alm)	18	Appelez-nous	-
1	74002283		Panel, Door (alm)	10	Appelez-nous	-
2	7112P034-60		Clip, Door	10	Appelez-nous	-
3	8010P084-60		Spacer, Handle (blk)	10	Appelez-nous	-
4	WP2411F013-70		Handle, Door (chr)   (Replaces: 74001819)	10			$ 186.01
5	74001820		Handle (short-chr)	10	Appelez-nous	-
6	8016P015-60		Glide	10			$ 5.65
7	74002396		Lining, Door	10	Appelez-nous	-
7	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
8	4804F050-60		Insulation, Door 2``	10	Appelez-nous	-
8	4804F028-60		Insulation, Latch Assy.	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	74002316		Panel, Drawer (alm)	10	Appelez-nous	-
10	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	10		Immediately	$ 7.69
11	74002397		Lining, Drawer	10	Appelez-nous	-
12	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
13	74002398		Hinge, Drawer	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	74002481		Screw	10			$ 5.82
15	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
