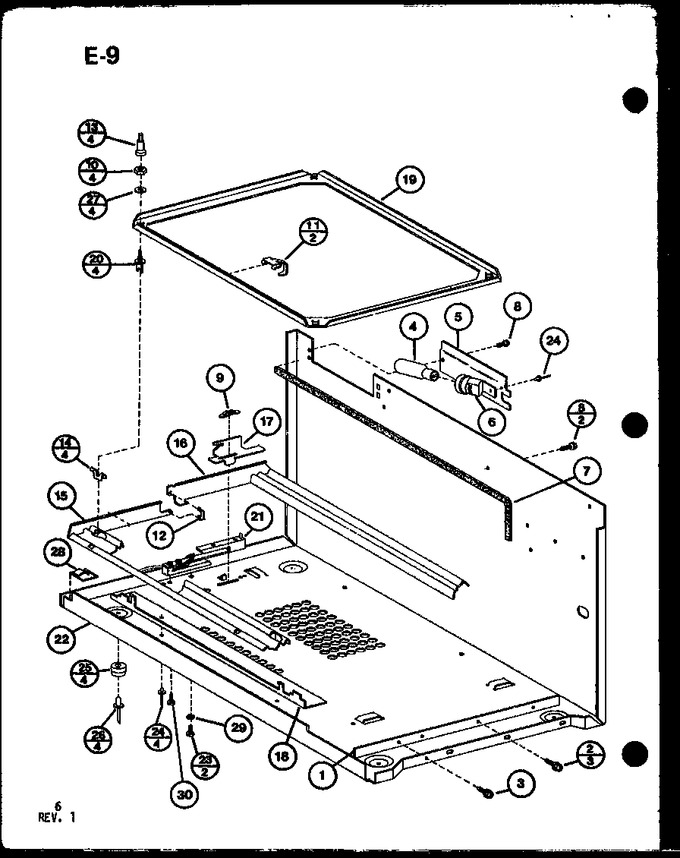

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8356701		Brace, Base Pan		Appelez-nous	-
2	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
3	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
4	A3167501		Bulb Q				$ 28.47
5	B5782906		Access Panel		Appelez-nous	-
6	B5784001		Socket		Appelez-nous	-
7	A3030302		Gasket		Appelez-nous	-
8	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
9	M0119902		Spring Nut		Appelez-nous	-
10	M0281407		Nut		Appelez-nous	-
11	A1044802		Clip		Appelez-nous	-
12	A1042401		Link Rivet Arm		Appelez-nous	-
13	B8328601		Post Platform		Appelez-nous	-
14	B8328901		Rivet		Appelez-nous	-
15	C8925801		Pivot Arm Front Assy		Appelez-nous	-
16	C8925901		Pivot Arm Front Assy		Appelez-nous	-
17	B8360501		Lock Rivet Arm		Appelez-nous	-
18	D7674801		Chassis		Appelez-nous	-
19	C8922901		Platform		Appelez-nous	-
20	C8919601		Pin Tray Support		Appelez-nous	-
21	C8921601		Transducer Assy		Appelez-nous	-
22	D7506218		Base Pan		Appelez-nous	-
23	M0253704		Screw A K		Appelez-nous	-
24	A4539601		Pop Rivet		Appelez-nous	-
25	B5732506		Foot O.c. Wrapper		Appelez-nous	-
26	A4539624		Pop Rivet		Appelez-nous	-
27	M0270535		Washer		Appelez-nous	-
28	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
29	M0272503		Washer		Appelez-nous	-
30	M0234114		Screw		Appelez-nous	-
