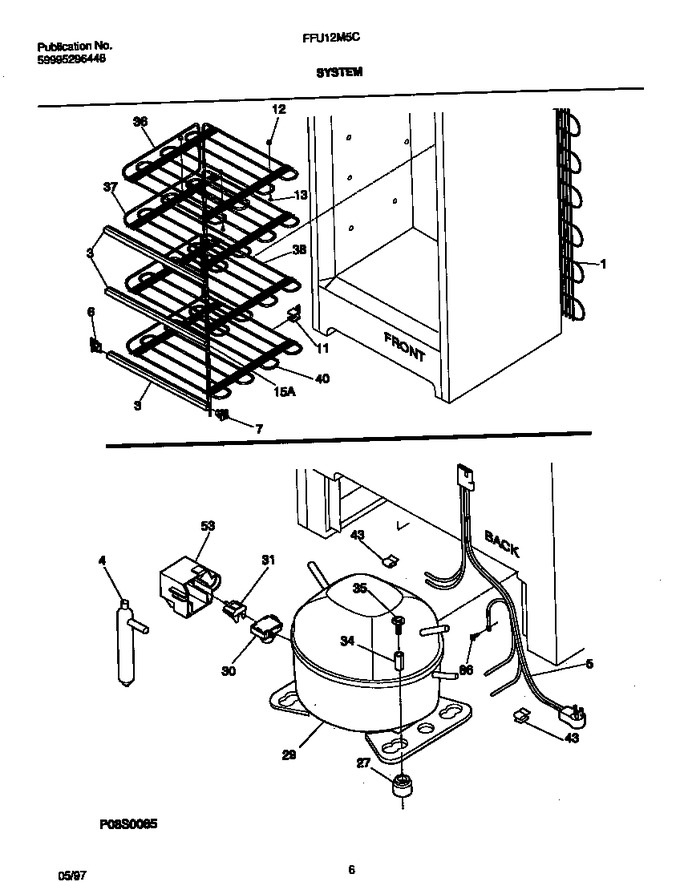

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
3	5304509722		Trim-shelf, Evaporator   (Replaces: 216097800)				$ 28.20
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216405200		Harness-wire, Electrical		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
15	216404900		Heat Exchanger				$ 264.23
27	216498900		Grommet,compressor				$ 13.01
29	5304443412		Compressor, Service   (Replaces: 5303925314)				$ 856.23
30	216511200		Starter-ptc		Appelez-nous	-
31	216100113		Overload Protector				$ 169.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	216069700		Grid-top Evaporator		Appelez-nous	-
37	216069800		Shelf-top Evaporator		Appelez-nous	-
38	216069900		Shelf-middle Evaporator		Appelez-nous	-
40	216070000		Shelf-bottom Evaporator				$ 99.23
43	5303212614		Clip Harness				$ 2.88
53	216347800		Cover, Compressor		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
