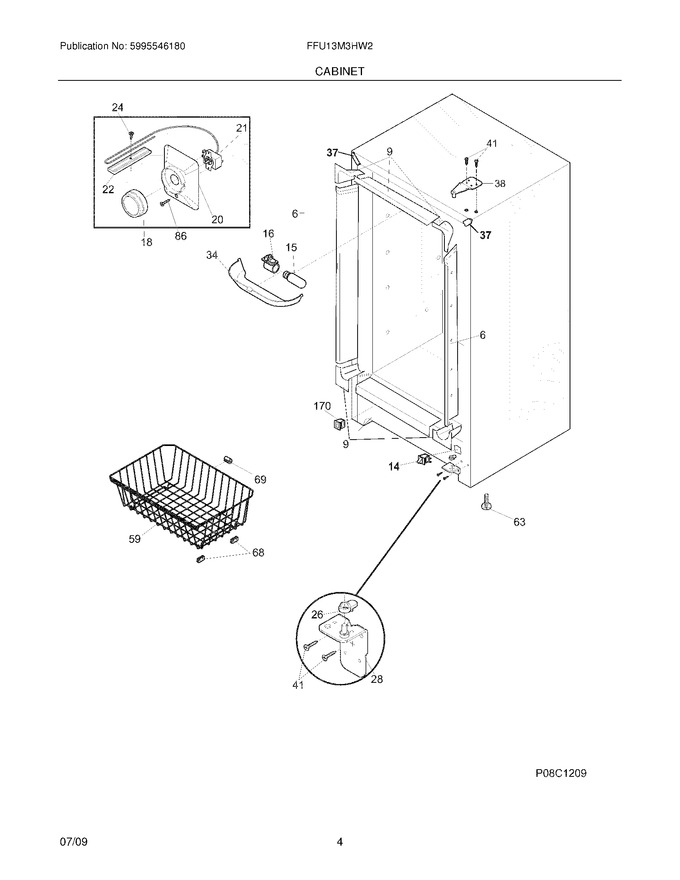

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	297200300		Breaker Kit W/corners,no Lock Slot				$ 39.69
9	297200200		Breaker Kit W/corners,28`` ,top And Bottom				$ 45.32
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139500		Socket,light/lamp				$ 18.08
18	216707200		Knob,temp Control				$ 44.10
20	297013800		Cover-control Housing				$ 80.43
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	297283900		Hinge-bottom,stepped Pin			Immediately	$ 54.23
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner,white ,(2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
59	297225100		Basket				$ 102.59
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
170	297280400		Valve,breather				$ 10.13
59A	216486500		Stop-basket,(2)				$ 20.58
F21	297216004		Control-temperature   (Replaces: 216788100)			Immediately	$ 53.52
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297221201		Energy Guide		Appelez-nous	-
