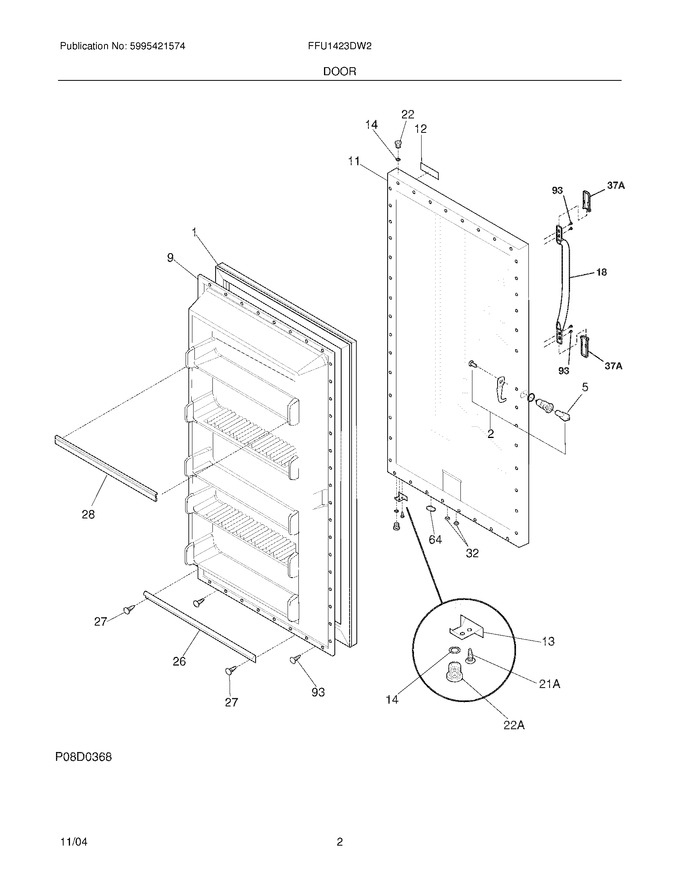

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507201		Gasket,door Seal ,white   (Replaces: 216522306)			Immediately	$ 185.36
2	5303925107		Lock Assy		Appelez-nous	-
9	216527615		Panel-inner Door,frzr				$ 304.43
11	216557836		Panel-outer Door,white		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
22	216970802		Bearing,hinge ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524300		Gasket,secondary				$ 27.56
27	5303212828		Clip,panel Mtg				$ 16.63
28	216951601		Rack-door,(5)				$ 44.68
32	5309950074		Valve,breather ,door Base				$ 12.48
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
12A	216892800		Nameplate		Appelez-nous	-
21A	08005520		Screw-door Stop		Appelez-nous	-
22A	297006800		Bearing,hinge ,bottom   (Replaces: 216503200)				$ 12.29
37A	215870619		Trim-handle, 2.47``, White, W/chrome Band				$ 72.72
37A	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
