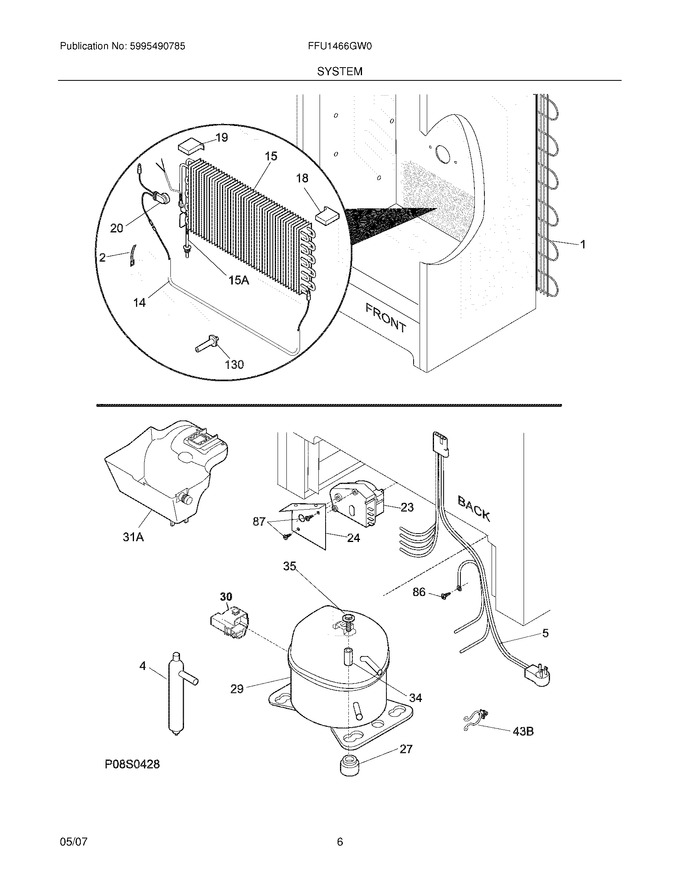

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 97.81
15	297414800		Evaporator   (Replaces: 216737400)				$ 145.30
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08016582		Screw,hi-lo Blunt ,8-18 X 1/2		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
15A	297348500		Heat Exchanger   (Replaces: 216565700)				$ 112.69
31A	216948700		Pan-drain				$ 49.93
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F1	5300123788		Condenser				$ 635.80
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	5304507765		Compressor,assy ,w/electricals   (Replaces: 297054400)			Immediately	$ 677.23
F30	5304499966		Relay Combo   (Replaces: 297054500)				$ 79.52
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297015900		Harness-main		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85
NI	297014500		Plug-suction Line		Appelez-nous	-
