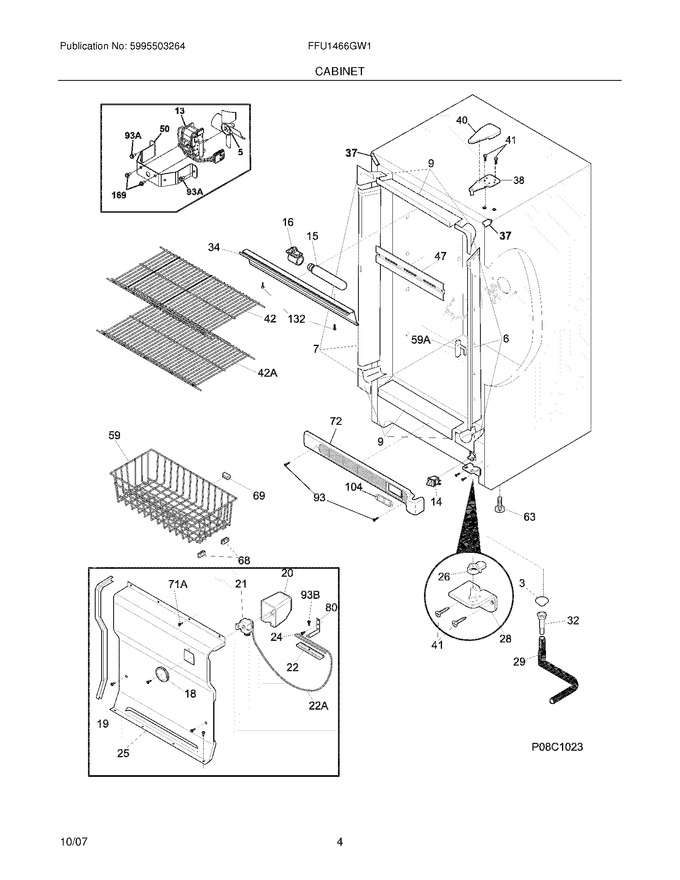

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 6 | 297200300 | Breaker Kit W/corners,no Lock Slot |
|
$ 39.69 | |||||
| 7 | 297200500 | Breaker Kit W/corners,incl Lock Catch |
|
$ 74.99 | |||||
| 9 | 297200200 | Breaker Kit W/corners,28`` ,top And Bottom |
|
$ 45.32 | |||||
| 13 | 297309000 | Motor,fan ,115 V (Replaces: 216934100) |
|
Immediately | $ 55.32 | ||||
| 14 | 216822900 | Switch,light/lamp ,ramp (Replaces: 216998000) |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 44.10 | |||||
| 19 | 216204900 | Gasket, Evap Cover |
|
$ 51.45 | |||||
| 20 | 216967201 | Cover,temp Control (Replaces: 216967200) |
|
$ 15.18 | |||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5304460604 | Screw,type A ,10-24 X 3/8 |
|
- | |||||
| 25 | 297098600 | Cover-evaporator |
|
- | |||||
| 26 | 216503300 | Ramp,door Closer |
|
$ 8.82 | |||||
| 28 | 297164500 | Hinge-bottom,stepped Pin |
|
$ 37.76 | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216816220 | Shield-light |
|
- | |||||
| 37 | 5303918606 | Trim-cabinet Corner,white ,(2) (Replaces: 241611301) |
|
$ 7.09 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297164300) |
|
Immediately | $ 19.52 | ||||
| 40 | 297164400 | Cover-hinge |
|
$ 12.65 | |||||
| 41 | 240578902 | Screw-hinge Mtg,hex Head ,1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 42 | 297119800 | Shelf,16.69 X 23.88 ,white ,(2) |
|
- | |||||
| 47 | 297192903 | Plate,baffle ,snap Fit (Replaces: 216661600) |
|
Immediately | $ 25.31 | ||||
| 50 | 216394050 | Bracket,fan Motor Mount |
|
$ 22.75 | |||||
| 59 | 216826400 | Basket |
|
- | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 68 | 08009560 | Glide Basket (4) |
|
$ 35.25 | |||||
| 69 | 5305878546 | Bumper Basket (2) |
|
$ 7.23 | |||||
| 72 | 297036802 | Grille/kickplate,28`` ,white |
|
$ 48.46 | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 104 | 216926700 | Shield |
|
$ 42.06 | |||||
| 104 | 216948401 | Light,signal,assy W/bracket |
|
$ 55.24 | |||||
| 132 | 5304460601 | Screw,6-20ab X 3/8 |
|
- | |||||
| 169 | 216912401 | Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2) |
|
$ 12.76 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 42A | 297119900 | Shelf,14.50 X 23.88 ,white |
|
- | |||||
| 59A | 216486500 | Stop-basket,(2) |
|
$ 20.58 | |||||
| 71A | 297146800 | Screw,8-18ab X 0.470 ,evap Panel |
|
- | |||||
| 93A | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 13.01 | |||||
| 93B | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| F21 | 216788000 | Control-temperature |
|
$ 163.30 | |||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 16.63 | |||||
| NI | 216795312 | Energy Guide |
|
- | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| NI | 216273000 | Clip, Drain Hose |
|
$ 22.42 |
