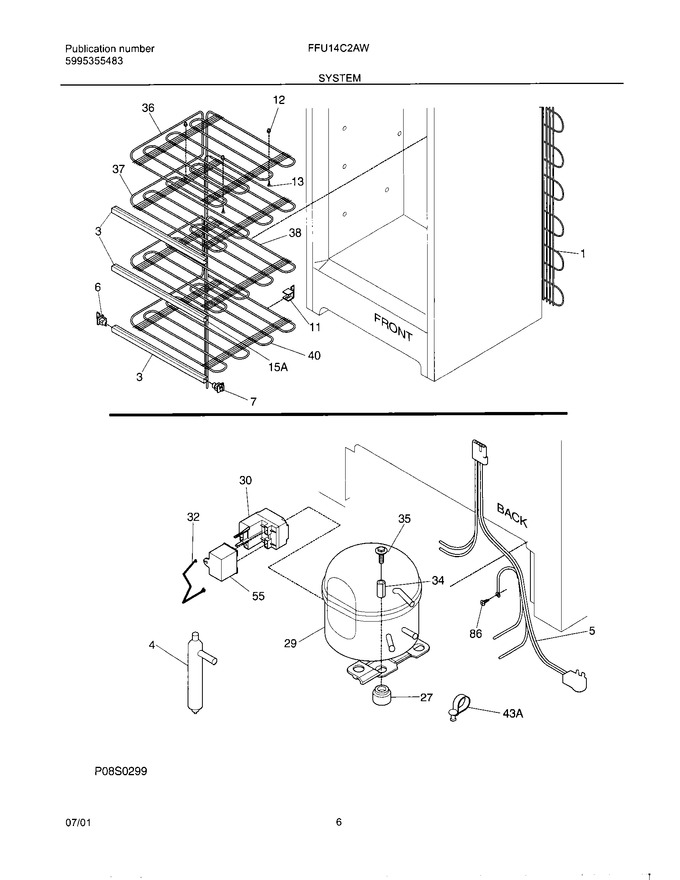

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300123788 | Condenser |
|
$ 635.80 | |||||
| 3 | 5304509722 | Trim-shelf,evaporator (Replaces: 216743000) |
|
$ 28.20 | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 6 | 297001600 | Support-shelf,front Lh (Replaces: 3091418) |
|
$ 18.08 | |||||
| 7 | 297001500 | Support, Shelf, Front Rh (Replaces: 08037928) |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138900 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
$ 3.31 | |||||
| 27 | 216498900 | Grommet,compressor |
|
$ 13.01 | |||||
| 30 | 5304491584 | Controller (Replaces: 216649313) |
|
Immediately | $ 101.35 | ||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 38 | 216070300 | Shelf-middle Evaporator |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 15A | 216404900 | Heat Exchanger |
|
$ 264.23 | |||||
| 43A | 216629700 | Clip-harness |
|
- | |||||
| F29 | 216784300 | Compressor,w/o Electricals |
|
- | |||||
| F36 | 297234400 | Grid-top Evaporator (Replaces: 216070100) |
|
$ 369.42 | |||||
| F37 | 216070200 | Shelf-top Evaporator |
|
- | |||||
| F40 | 216070400 | Shelf-bottom Evaporator |
|
- | |||||
| F5 | 216793400 | Harness-ext,main |
|
- | |||||
| F55 | 218909912 | Capacitor-run (Replaces: 216787800) |
|
Immediately | $ 74.75 | ||||
| NI | 216502500 | Sleeve-tube Insert |
|
$ 10.85 |
