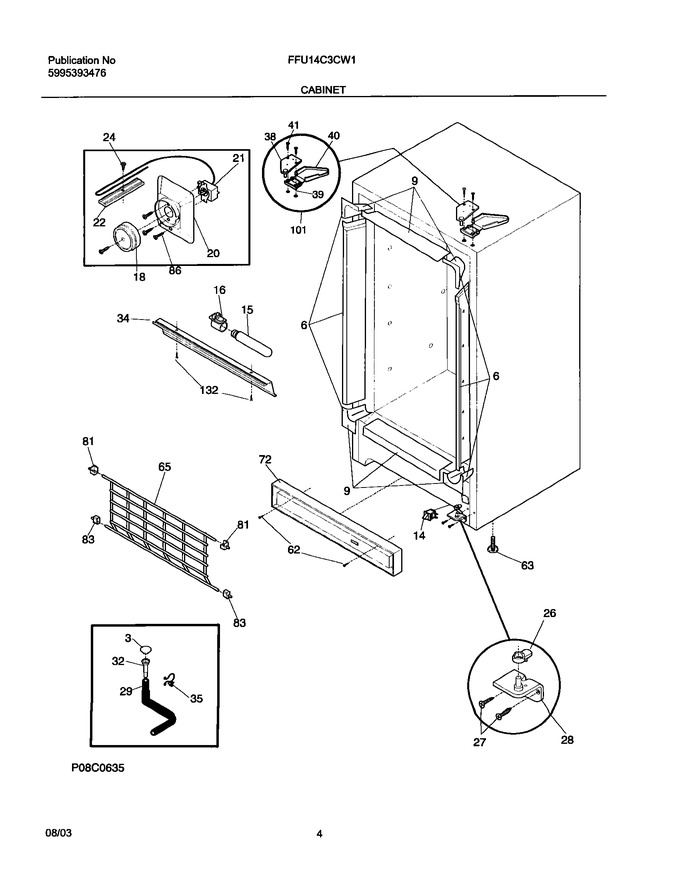

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug-drain,interior |
|
Immediately | $ 17.35 | ||||
| 6 | 216603400 | Breaker Kit W/corners,22.13`` Long ,top Or Bottom |
|
- | |||||
| 9 | 216604300 | Breaker Kit W/corners,45.13`` Long ,no Lock Slot |
|
$ 163.64 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 44.10 | |||||
| 20 | 216707300 | Cover-control Housing |
|
- | |||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 26 | 216503300 | Ramp,door Closer |
|
$ 8.82 | |||||
| 27 | 154518001 | Screw,hinge Mtg ,10 (a) X 0.875 ,btm (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 29 | 5304510363 | Hose-drain (Replaces: 216313502) |
|
$ 13.74 | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216816201 | Shield-light |
|
$ 659.66 | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 22.42 | |||||
| 38 | 216808900 | Hinge,plate ,top |
|
$ 92.87 | |||||
| 39 | 5303294372 | Nut-insert,1/4-20 Unc ,hinge |
|
$ 43.68 | |||||
| 40 | 297164400 | Cover-hinge (Replaces: 216809000) |
|
$ 12.65 | |||||
| 41 | 241710601 | Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg (Replaces: 216850900) |
|
$ 13.46 | |||||
| 62 | 131420300 | Screw, Cr Truss Head, 8-18ab X 0.750 |
|
$ 13.46 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 65 | 216447600 | Drop Front |
|
- | |||||
| 72 | 216294300 | Grille/kickplate |
|
- | |||||
| 81 | 216571000 | Support-drop Front,top |
|
$ 33.55 | |||||
| 83 | 216571100 | Support-drop Front,btm |
|
- | |||||
| 86 | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| 101 | 216835200 | Top Hinge Kit |
|
$ 50.99 | |||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8 |
|
- | |||||
| F21 | 297216004 | Control-temperature (Replaces: 216788100) |
|
Immediately | $ 53.52 | ||||
| NI | 09948773 | Insulation, Drain Tube |
|
$ 12.60 | |||||
| NI | 216794906 | Energy Guide |
|
- | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
