SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

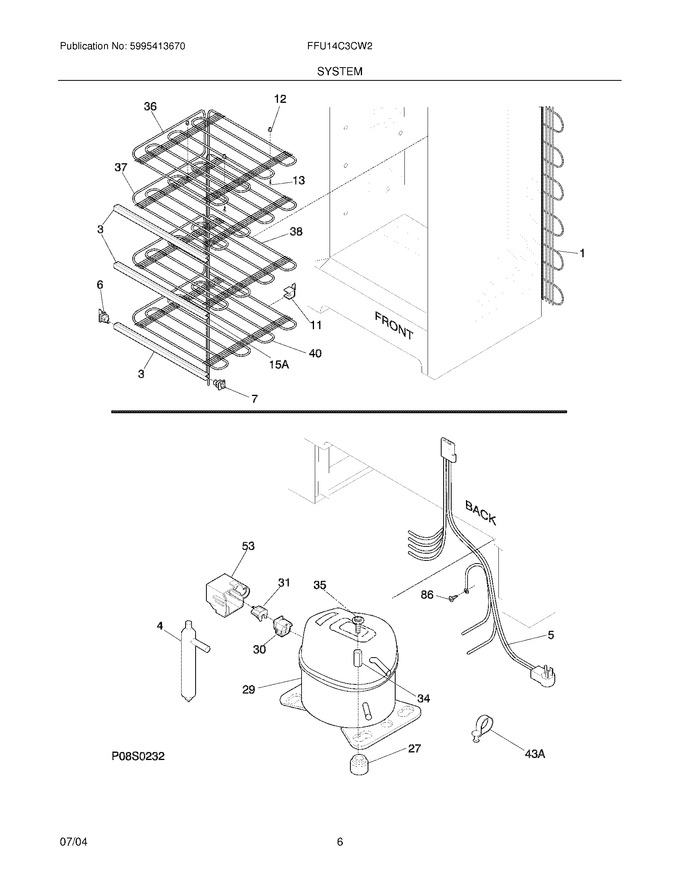

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509722		Trim-shelf,white ,evaporator ,(3)   (Replaces: 216847804)				$ 28.20
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216596800		Starter/,relay		Appelez-nous	-
32	216954300		Clip,controller				$ 17.01
34	5306594529		Sleeve Compressor (3)				$ 10.34
35	5303272328		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor,(3)				$ 10.34
53	216347800		Cover Terminal,cover-comp Term		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
15A	216404900		Heat Exchanger				$ 264.23
43A	216629700		Clip		Appelez-nous	-
F1	5300123788		Condenser				$ 635.80
F29	216888100		Compressor,w/o Electricals		Appelez-nous	-
F31	216954208		Overload Protector   (Replaces: 216100106)				$ 74.42
F36	297234400		Grid-top Evaporator   (Replaces: 216070100)				$ 369.42
F37	216070200		Shelf-top Evaporator		Appelez-nous	-
F38	216070300		Shelf-middle Evaporator		Appelez-nous	-
F40	216070400		Shelf-bottom Evaporator		Appelez-nous	-
F5	216943100		Harness-main				$ 28.83
NI	216502500		Sleeve,suction Line				$ 10.85

    View Diagram in Separate Window       Print Part List
