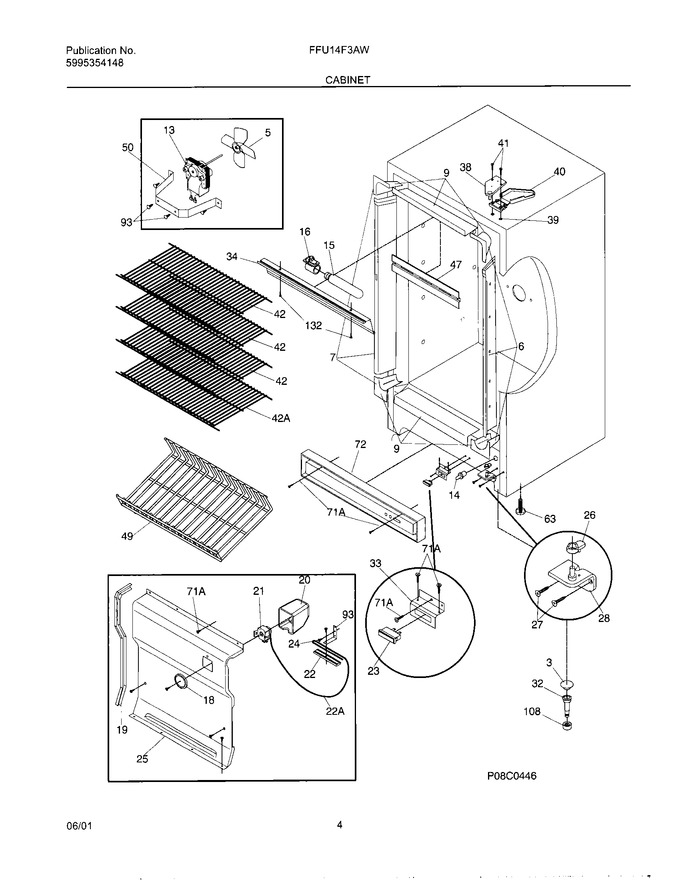

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216603400		Breaker Kit W/corners,28`` ,top Or Bottom		Appelez-nous	-
7	216603800		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216604300		Breaker Kit W/corners				$ 163.64
13	5304436055		Motor-fan   (Replaces: 216787000)				$ 184.37
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Lamp,light Bulb ,40 W ,120 V   (Replaces: 216608600)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
18	216707200		Knob-control Cold				$ 44.10
19	216204900		Gasket, Evap Cover				$ 51.45
20	5303288184		Cover-control Housing		Appelez-nous	-
21	216788000		Control-temperature				$ 163.30
22	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22	05878562		Clamp		Appelez-nous	-
23	06594648		Signal Light, Amber		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216737000		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
33	216252001		Bracket, Signal Light		Appelez-nous	-
34	216557500		Shield-light		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216546200		Shelf,14.50 X 23.88 Wh,14.50x23.88 ,white		Appelez-nous	-
42	216546100		Shelf,16.69 X 23.88 Wh,16.69x23.88 ,white		Appelez-nous	-
47	297192903		Baffle-plate   (Replaces: 216661600)			Immediately	$ 25.31
49	216278800		Trivet		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
71	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
72	216591215		Grille/kickplate		Appelez-nous	-
93	5303302760		Screw				$ 8.72
108	216388600		Trap-drain				$ 2.36
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216802800		Owners Guide				$ 21.98
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
