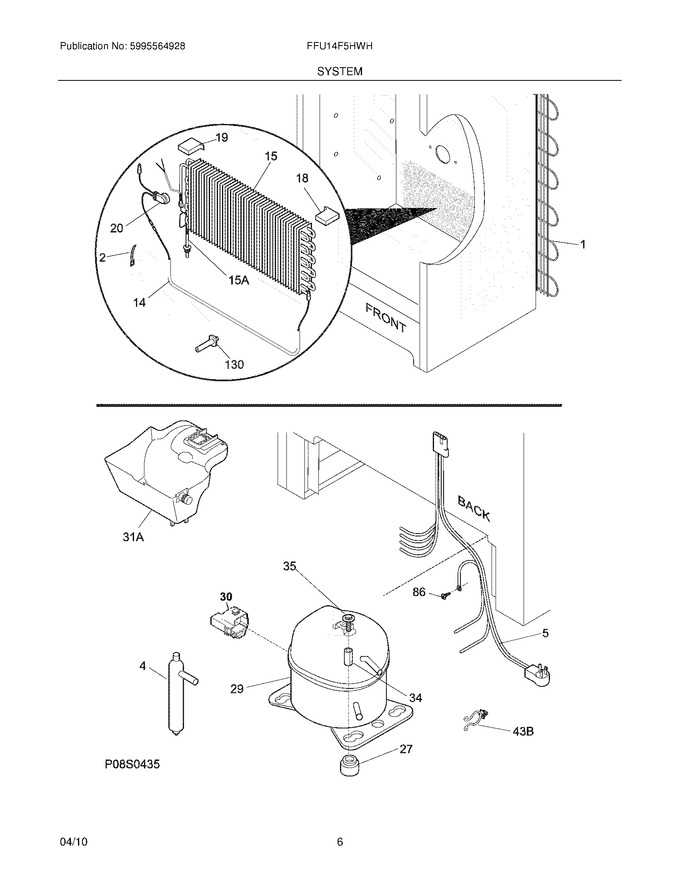

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216987501)			Immediately	$ 31.67
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
20	297216600		Thermostat,defrost			Immediately	$ 27.52
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
34	5306594529		Sleeve-compressor				$ 10.34
35	5304460607		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor		Appelez-nous	-
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
130	297244700		Support,evaporator Mtg				$ 4.26
15A	297348500		Heat Exchanger   (Replaces: 216565700)				$ 112.69
31A	216948700		Pan-drain				$ 49.93
43B	297315800		Clip,wire				$ 10.13
F1	5300123788		Condenser				$ 635.80
F14	5304496687		Heater-defrost   (Replaces: 297216202)				$ 97.81
F15	297414800		Evaporator   (Replaces: 216997200)				$ 145.30
F29	5304507765		Compressor,assy ,w/electricals   (Replaces: 297054400)			Immediately	$ 677.23
F30	5304499966		Relay Combo   (Replaces: 297054500)				$ 79.52
F5	297237600		Harness-main				$ 107.12
NI	216502500		Sleeve,suction Line				$ 10.85
NI	297014702		Plug-suction Line				$ 9.41
NI	297018400		Thermistor			Immediately	$ 79.52
NI	297102800		Spacer-tube		Appelez-nous	-
NI	241500305		Screw,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NINo.	297366805		Cord-power   (Replaces: 297169904)				$ 68.68
