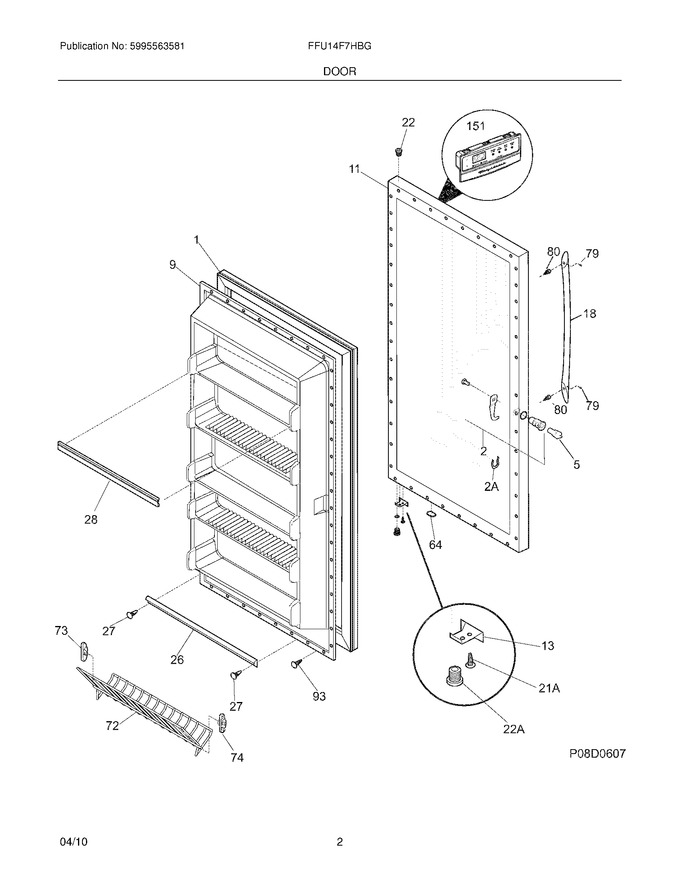

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216522357		Gasket-door,black		Appelez-nous	-
2	297318600		Lock Assy				$ 36.87
5	297147700		Key,lock			Immediately	$ 7.57
9	216527615		Panel-inner Door,frzr				$ 304.43
11	297316308		Panel-outer Door,black		Appelez-nous	-
13	297257001		Door Stop,black		Appelez-nous	-
18	297031801		Handle,upright ,black ,w/set Screw		Appelez-nous	-
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524301		Gasket,secondary				$ 10.87
27	5304472186		Clip,panel Mtg				$ 11.57
28	216951601		Rack-door,(4)				$ 44.68
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	216514101		Shelf-tilt Out,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
79	218755404		Screw-set,10-32 X 1.100		Appelez-nous	-
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
2A	297213300		Clip,spring				$ 10.17
F151	297241901		Control-electronic,assy ,black ,115v		Appelez-nous	-
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	240537301		Nut-anchor,door Hdl Screw				$ 11.34

    View Diagram in Separate Window       Print Part List
