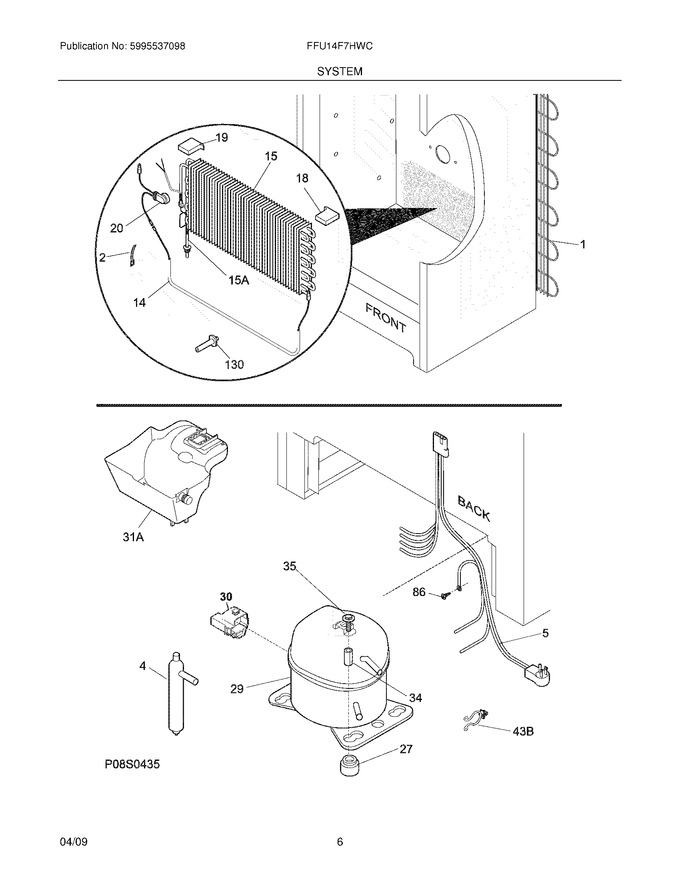

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 14 | 5304496687 | Heater-defrost (Replaces: 297216200) |
|
$ 97.81 | |||||
| 18 | 297078701 | Insulator-evap,styrofoam ,rh |
|
$ 3.62 | |||||
| 19 | 297078801 | Insulator-evap,styrofoam ,lh |
|
$ 3.62 | |||||
| 20 | 297216600 | Thermostat,defrost |
|
Immediately | $ 27.52 | ||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5304460607 | Screw,ind Hex Sems ,1/4-28 Unfx ,compressor |
|
- | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 130 | 297244700 | Support,evaporator Mtg |
|
$ 4.26 | |||||
| 15A | 297348500 | Heat Exchanger (Replaces: 216565700) |
|
$ 112.69 | |||||
| 31A | 216948700 | Pan-drain |
|
$ 49.93 | |||||
| 43B | 297315800 | Clip (Replaces: 297048400) |
|
$ 10.13 | |||||
| F1 | 5300123788 | Condenser |
|
$ 635.80 | |||||
| F15 | 297414800 | Evaporator (Replaces: 216997200) |
|
$ 145.30 | |||||
| F29 | 5304507765 | Compressor,assy ,w/electricals (Replaces: 297054400) |
|
Immediately | $ 677.23 | ||||
| F30 | 5304499966 | Relay Combo (Replaces: 297054500) |
|
$ 79.52 | |||||
| F5 | 297237601 | Harness-main |
|
- | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 | |||||
| NI | 297018400 | Thermistor |
|
Immediately | $ 79.52 | ||||
| NI | 241500305 | Screw,no.8 ,18x.63 ,self Pierce (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 297014500 | Plug-suction Line |
|
- | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NINo. | 297366805 | Cord-power (Replaces: 297169904) |
|
$ 68.68 |
