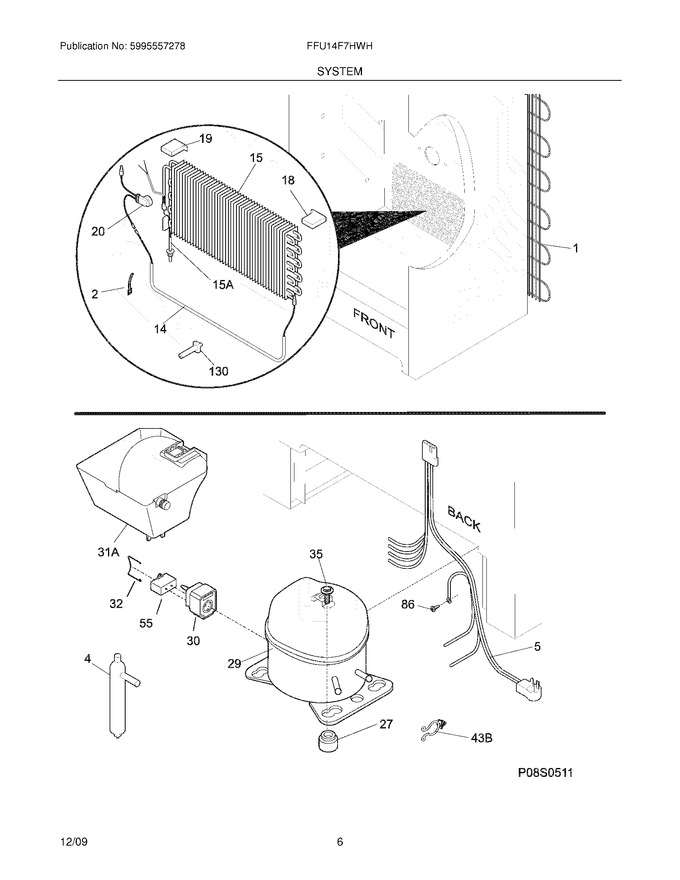

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
14	297216201		Heater-defrost		Appelez-nous	-
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
20	297216600		Thermostat,defrost			Immediately	$ 27.52
27	218513300		Grommet-compr Mtg,(4)				$ 42.53
30	216954222		Controller				$ 85.05
32	216649200		Clip,controller				$ 6.30
35	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
55	297286812		Capacitor,run ,12 Mf   (Replaces: 216985002)			Immediately	$ 11.78
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
130	297244700		Support,evaporator Mtg				$ 4.26
15A	297348600		Heat Exchanger   (Replaces: 216976200)				$ 120.74
31A	297307800		Pan-drain		Appelez-nous	-
43B	297315800		Clip,wire				$ 10.13
F1	5300123788		Condenser				$ 635.80
F15	297414800		Evaporator   (Replaces: 216997200)				$ 145.30
F29	5304507765		Compressor,w/o Electricals   (Replaces: 297307203)			Immediately	$ 677.23
F5	297237601		Harness-main		Appelez-nous	-
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297018400		Thermistor			Immediately	$ 79.52
NI	297102800		Spacer-tube		Appelez-nous	-
NI	241500305		Screw,no.8 ,18x.63 ,self Pierce   (Replaces: 297174300)				$ 3.03
NI	5303311565		Clip-cable				$ 2.10
NI	297366805		Cord-power   (Replaces: 297169904)				$ 68.68
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	216502500		Sleeve,suction Line				$ 10.85
