SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit (ice)


06 - Shelves & Accessories


07 - Unit Compartment & System

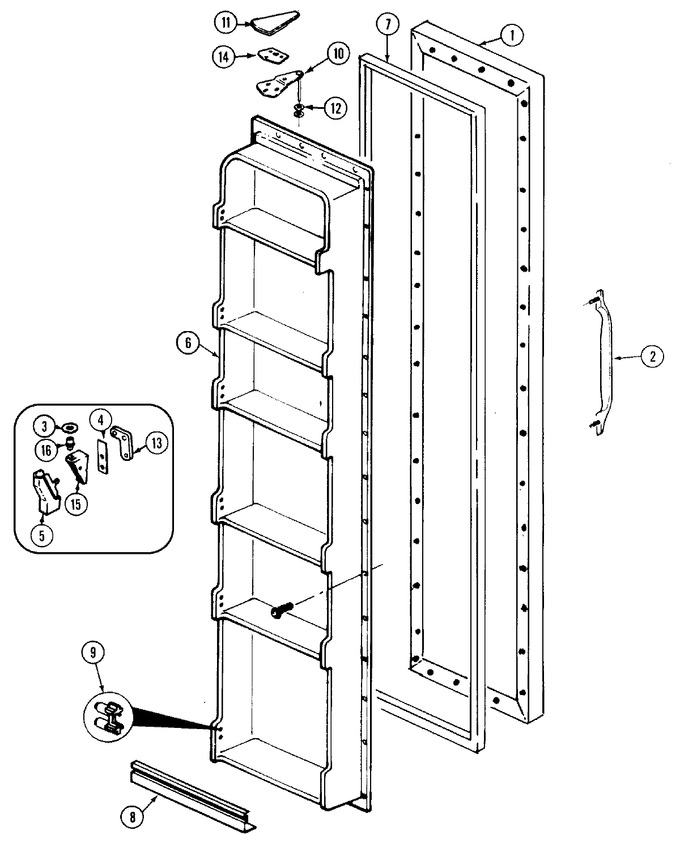

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72346-3-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	W10856122		Screw   (Replaces: 65275-65)	10			$ 6.98
2	12001068		Kit, Handle Assy.	10	Appelez-nous	-
3	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
4	69031-1		Shim	10	Appelez-nous	-
5	68978-4		Cover, Lower Hinge (wht)	10	Appelez-nous	-
6	69246-1		Liner, Frz. Door	10	Appelez-nous	-
6	65275-5		Screw	10	Appelez-nous	-
7	70024-1		Gasket	10	Appelez-nous	-
8	WP70111-108		Trim, Shelf   (Replaces: 70111-1)	10		Immediately	$ 104.35
9	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
10	53709-18		Door Hinge, Upper	10	Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
11	65003-6		Cover, Upper Hinge (wht)	10	Appelez-nous	-
12	WP52185-1		Washer   (Replaces: 52185-1)	10		Immediately	$ 9.47
13	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
13	65275-59		Screw	10	Appelez-nous	-
14	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
15	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
15	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
16	69845-1		Pin, Lower Hinge	10			$ 44.55

    View Diagram in Separate Window       Print Part List
