SELECT A DIAGRAM

01 - Compressor


02 - Controls


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Optional Ice Maker Kit-uki2000axx


09 - Shelves & Accessories


10 - Wiring Information

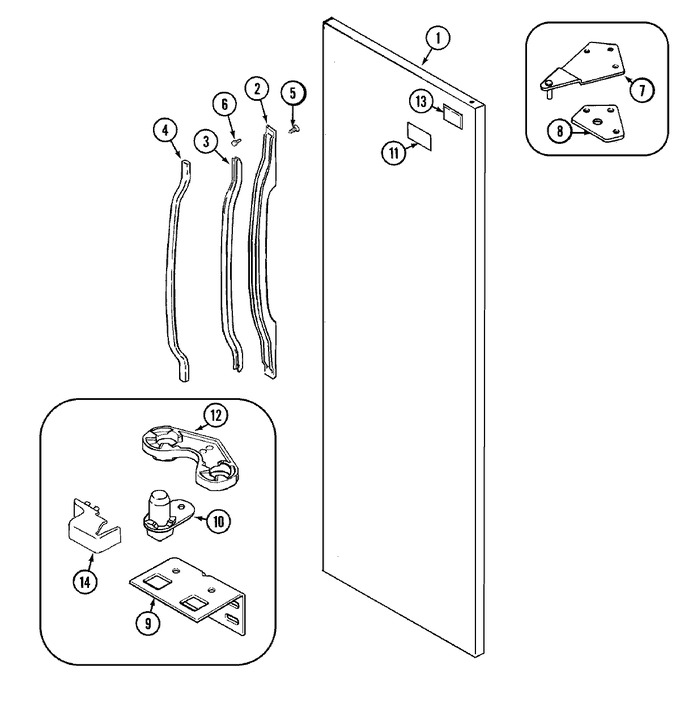

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61003165		Panel, F.f. Door (wht)	10	Appelez-nous	-
2	61003167		Handle (wht)	10	Appelez-nous	-
3	61003168		Frame, Handle	10	Appelez-nous	-
4	61003169		Insert, Handle (wht)	10	Appelez-nous	-
5	61003172		Screw	10	Appelez-nous	-
6	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
7	61001971		Hinge, Upper	10	Appelez-nous	-
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
9	61001918		Hinge, Lower (wht)	10			$ 38.93
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	61002078		Nameplate (wht)	10	Appelez-nous	-
12	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
12	61003647		Closer, Door (natural)	10			$ 10.19
13	66981-5		Bezel, Nameplate (wht)	10	Appelez-nous	-
14	61003220		Cover, Lower Hinge (wht)	10			$ 15.37

    View Diagram in Separate Window       Print Part List
