Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507201		Gasket-door,white   (Replaces: 216522306)			Immediately	$ 185.36
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
6	218990001		Screw-anchor,8-18   (Replaces: 5300158222)				$ 16.30
9	216527609		Panel-inner Door,frzr		Appelez-nous	-
11	5303925479		Panel-outer Door,white		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	216315100		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
17	216087400		End Cap-white (2)				$ 43.81
18	216518000		Handle,center		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209001		Insert,handle Bottom		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	297006800		Bearing-hinge, Btm   (Replaces: 216503200)				$ 12.29
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	216524300		Gasket,secondary				$ 27.56
27	5303212828		Clip,panel				$ 16.63
32	5309950074		Valve, Breather				$ 12.48
37	216087600		Trim-handle,bottom		Appelez-nous	-
37	216370700		Trim-handle,upper		Appelez-nous	-
39	08016809		Fastener,door Strip		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
64	216403700		Plug-button, Base Door				$ 58.12
72	216514101		Shelf-tilt Out,wire		Appelez-nous	-
73	216513900		End Cap,tiltout ,lh				$ 48.86
74	216514000		End Cap,tiltout ,rh				$ 48.05
76	216521800		Support Psuedo Bin,lh				$ 24.05
77	216522100		Support Psuedo Bin,rh				$ 24.20
78	216579600		Rack-shelf,pseudo		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*67120	216485600		Label-frozen Food		Appelez-nous	-

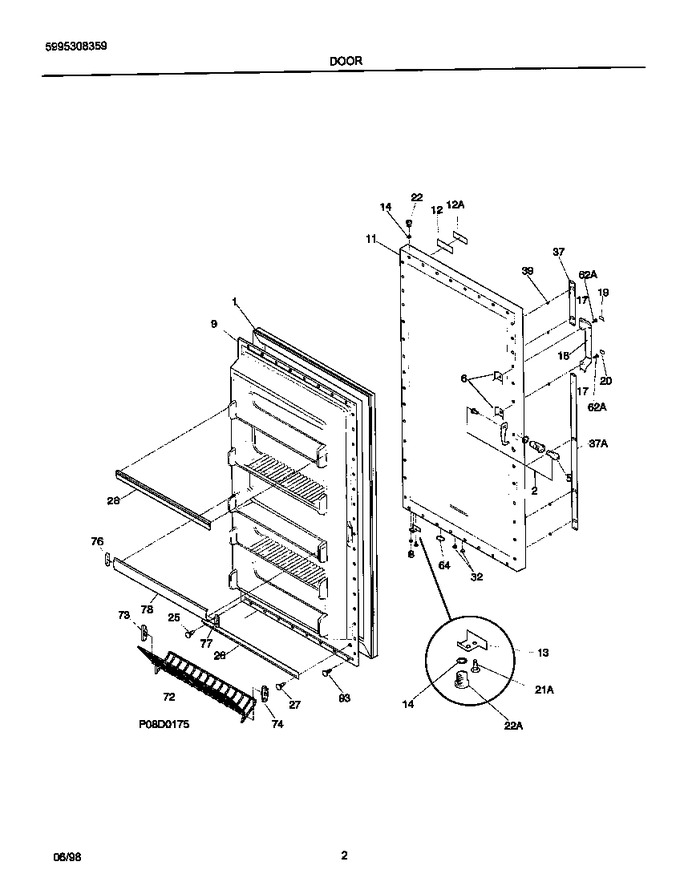

    View Diagram in Separate Window       Print Part List
