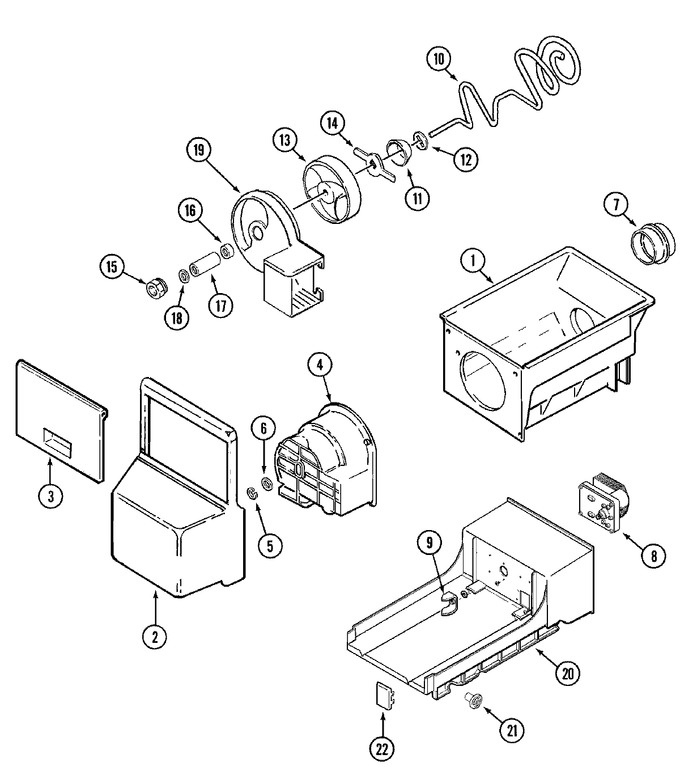

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61003319		Bin, Ice	10	Appelez-nous	-
2	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
2	61003320		Front, Ice Bin	10	Appelez-nous	-
3	61004327		Door, Ice Bin	10			$ 29.45
4	61003322		Housing, Crusher	10	Appelez-nous	-
4	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
5	69704-1		Ring, Snap	10	Appelez-nous	-
6	489234		Washer, Retainer   (Replaces: 69703-1)	10			$ 12.03
7	61003336		Ring, Drive	10			$ 24.08
8	2006253		Screw   (Replaces: 61003324)	10			$ 12.12
8	12001773		Assy., Auger Motor/yoke   (Replaces: 12001774)	10			$ 312.61
8	61003325		Wire Harness, Auger Motor	10	Appelez-nous	-
9	WP63052-2		Yoke, Ice Dispenser   (Replaces: 63052-1)	10		Immediately	$ 62.02
10	61003326		Auger	10	Appelez-nous	-
11	69699-1		Cone, Ice Deflector	10	Appelez-nous	-
12	69698-1		Washer, Cone Stop	10	Appelez-nous	-
13	61003327		Impeller	10	Appelez-nous	-
14	61003328		Plate, Drive	10	Appelez-nous	-
15	69709-1		Nut, Auger	10	Appelez-nous	-
16	69697-1		Bearing, Spacer	10	Appelez-nous	-
17	61003329		Spacer, Blade	10	Appelez-nous	-
18	69696-2		Spacer, Blade	10	Appelez-nous	-
19	61003334		Mandiplate	10	Appelez-nous	-
20	WP67006908		Screw   (Replaces: 400022-1)	10		Immediately	$ 7.16
20	61003335		Enclosure, Ice	10	Appelez-nous	-
21	61003333		Support, Enclosure	10	Appelez-nous	-
21	WP67006908		Screw   (Replaces: 400022-1)	10		Immediately	$ 7.16
22	61003330		Cover, Solenoid	10	Appelez-nous	-
