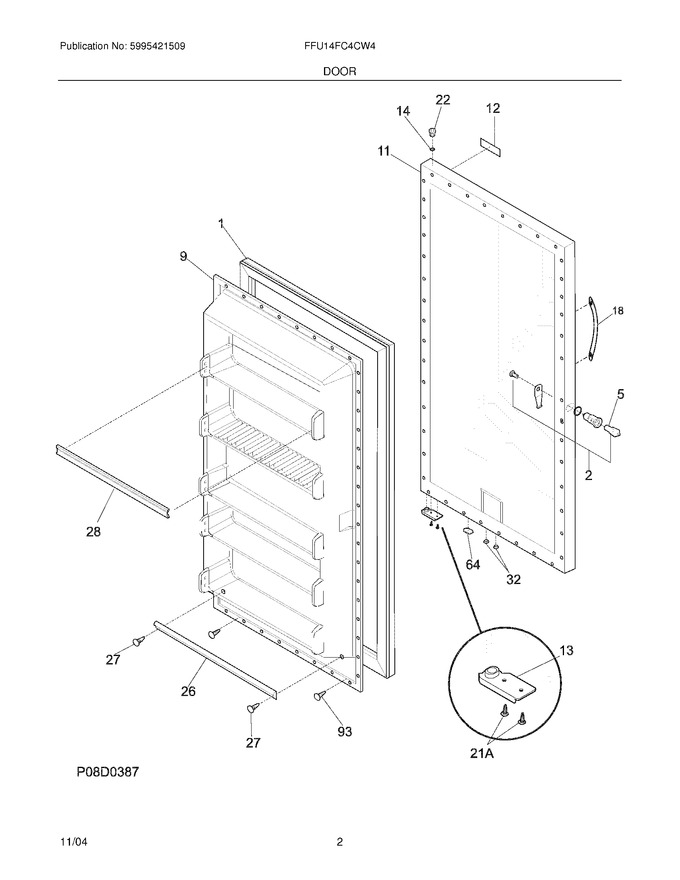

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507201		Gasket,door Seal ,white   (Replaces: 216522306)			Immediately	$ 185.36
2	5303925107		Lock Assy		Appelez-nous	-
9	216527615		Panel-inner Door,frzr				$ 304.43
11	216557829		Panel-outer Door,white		Appelez-nous	-
12	240449705		Nameplate,white				$ 16.18
13	216929100		Door Stop		Appelez-nous	-
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216921200		Handle,white		Appelez-nous	-
22	5303925197		Bearing,hinge ,top				$ 23.73
26	216524300		Gasket,secondary				$ 27.56
27	5303212828		Clip,panel Mtg				$ 16.63
28	216807701		Rack-door,(5)		Appelez-nous	-
32	5309950074		Valve,breather ,door Base				$ 12.48
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
21A	154518001		Screw,door Stop ,10 (a) X 0.875 ,btm   (Replaces: 5303205738)				$ 10.54
22A	297006800		Bearing,hinge ,bottom   (Replaces: 216503200)				$ 12.29
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	216932500		Nut,flange Locking ,handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
