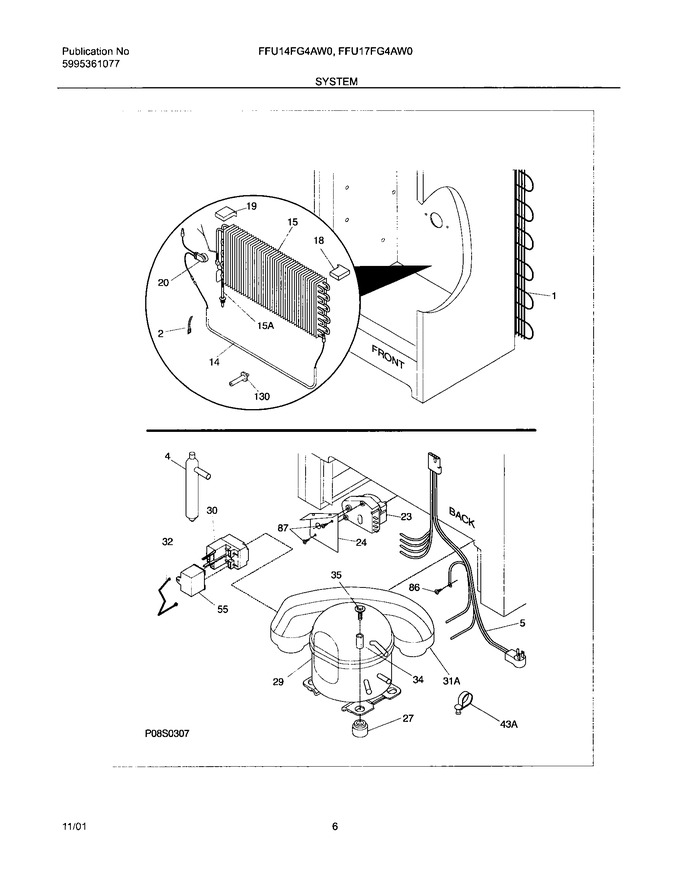

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 97.81
15	297414800		Evaporator   (Replaces: 216737400)				$ 145.30
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 27.52
23	5304518034		Timer-defrost   (Replaces: 216744400)			Immediately	$ 57.55
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
30	5304491584		Controller   (Replaces: 216649313)			Immediately	$ 101.35
32	216649200		Clip,controller				$ 6.30
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
130	216730400		Support-evaporator		Appelez-nous	-
15A	297348500		Heat Exchanger   (Replaces: 216565700)				$ 112.69
31A	5304428401		Pan-drain,production Compr   (Replaces: 216601800)				$ 284.92
43A	216629700		Clip-harness		Appelez-nous	-
F1	5300123788		Condenser				$ 635.80
F29	216784300		Compressor,w/o Electricals		Appelez-nous	-
F5	216790500		Harness,electrical		Appelez-nous	-
F55	218909912		Capacitor-run   (Replaces: 216787800)			Immediately	$ 74.75
NI	216502500		Sleeve-tube Insert				$ 10.85
NI	216816500		Pan-drain		Appelez-nous	-
