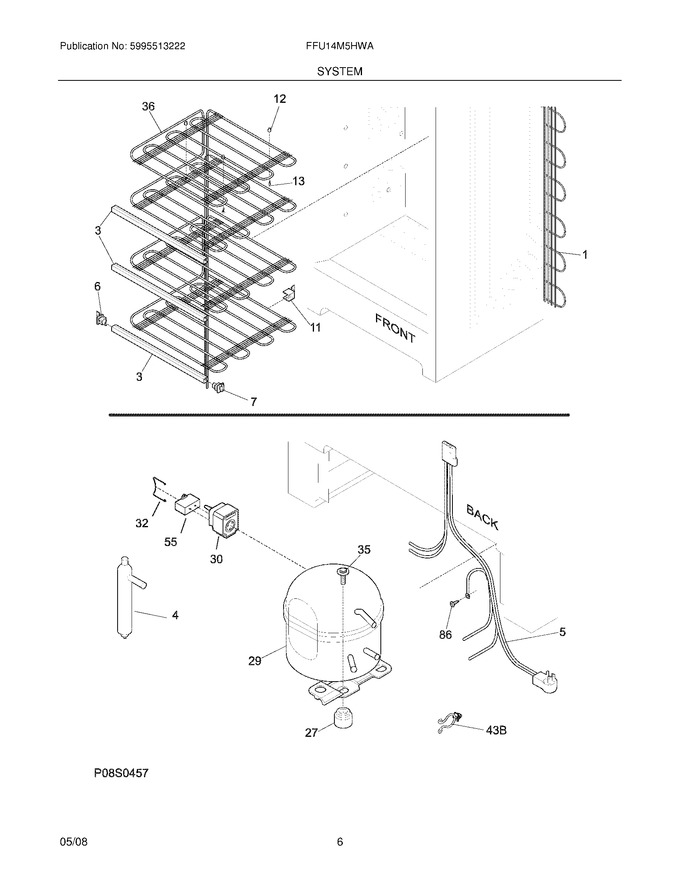

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304509722 | Trim-shelf,white ,evaporator (Replaces: 216847804) |
|
$ 28.20 | |||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 6 | 297001600 | Support-shelf,front Lh |
|
$ 18.08 | |||||
| 7 | 297001500 | Support-shelf,front Rh |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954200 | Controller,compressor ,5 Speed |
|
$ 63.79 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 17.01 | |||||
| 35 | 297177200 | Bolt,compressor |
|
- | |||||
| 55 | 297286812 | Capacitor,run ,10mf (Replaces: 216985000) |
|
Immediately | $ 11.78 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 43B | 297315800 | Clip (Replaces: 297048400) |
|
$ 10.13 | |||||
| F1 | 5300123788 | Condenser |
|
$ 635.80 | |||||
| F29 | 5304507767 | Compressor,w/o Electricals (Replaces: 216966300) |
|
$ 726.41 | |||||
| F36 | 297234400 | Evaporator,tubing Assy ,white (Replaces: 216940000) |
|
$ 369.42 | |||||
| F5 | 297171900 | Harness-main,w/light |
|
$ 66.34 | |||||
| FNI | 297366805 | Cord-power,flat (Replaces: 297169900) |
|
$ 68.68 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 |
