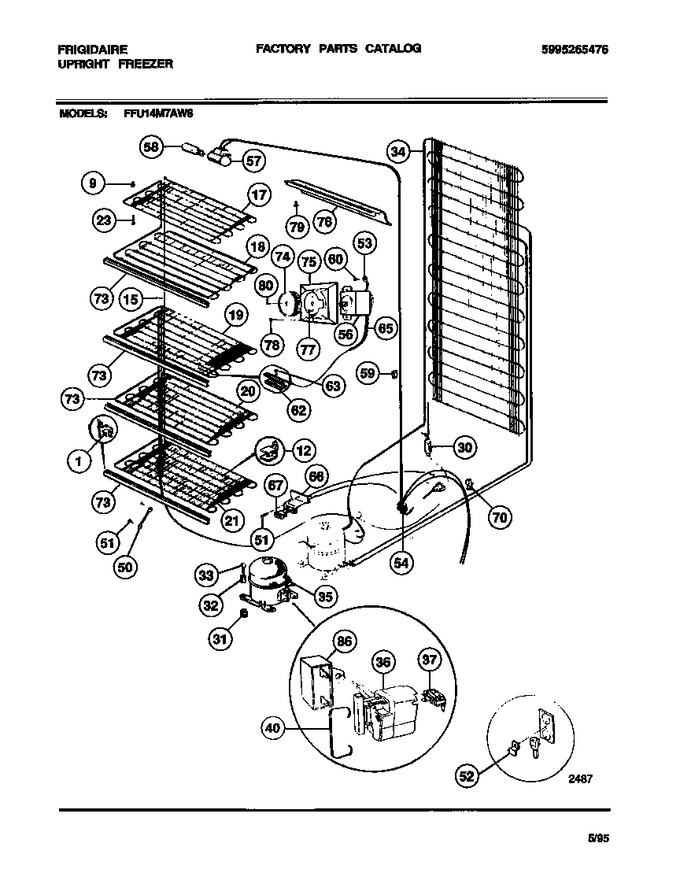

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door
03 - Cabinet
04 - Liner And Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297001600 | Support Front-lh (3) (Replaces: 3091418) |
|
$ 18.08 | |||||
| 9 | 216225700 | Spcr-top Grid-front (3) |
|
$ 7.77 | |||||
| 12 | 216225600 | Support Rear (6) |
|
- | |||||
| 15 | 08010753 | Heat Exchanger |
|
- | |||||
| 17 | 297234400 | Top Grid (Replaces: 216070100) |
|
$ 369.42 | |||||
| 18 | 216070200 | First Shelf |
|
- | |||||
| 19 | 216070300 | Second Shelf |
|
- | |||||
| 20 | NOT USED | Third Shelf |
|
- | |||||
| 21 | 216070400 | Bottom Shelf |
|
- | |||||
| 23 | 216138900 | Screw-top Grid (3) |
|
$ 3.31 | |||||
| 30 | 5303305677 | Drier-filter |
|
Immediately | $ 31.67 | ||||
| 31 | 216498900 | Grommet (4) (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 32 | 5306594529 | Sleeve (3) |
|
$ 10.34 | |||||
| 33 | 5303272328 | Screw (3) |
|
$ 10.34 | |||||
| 34 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 35 | 5303925126 | Compressor |
|
- | |||||
| 36 | 216008900 | Relay |
|
- | |||||
| 37 | 5303276514 | Overload |
|
$ 64.94 | |||||
| 40 | 215012000 | Clamp, Cover |
|
$ 2.63 | |||||
| 50 | 06594651 | Wire, Ground |
|
- | |||||
| 51 | 08037851 | Screw |
|
$ 3.57 | |||||
| 52 | 08016771 | Assy Power Cord Clamp |
|
- | |||||
| 53 | 5300125347 | Ground Wire |
|
- | |||||
| 54 | 216233800 | Wiring Harness |
|
- | |||||
| 56 | 216260400 | Control-temperature |
|
$ 178.23 | |||||
| 57 | 5300136117 | Socket-light |
|
$ 52.46 | |||||
| 58 | 5303091423 | Bulb |
|
- | |||||
| 59 | 08037401 | Retainer Harness (7) |
|
$ 2.85 | |||||
| 60 | 08009412 | Screw |
|
- | |||||
| 62 | 08037931 | Clamp-capillary |
|
- | |||||
| 63 | 5300052943 | Screw, Clamp |
|
$ 5.30 | |||||
| 65 | 5308037932 | Sleeve-cap Tube |
|
- | |||||
| 66 | 216252001 | Bracket-siginal Light |
|
- | |||||
| 67 | 06594648 | Signal Light, Amber |
|
- | |||||
| 70 | 5303212614 | Clip Harness |
|
$ 2.88 | |||||
| 73 | 5304509722 | Front-shelf (Replaces: 216097800) |
|
$ 28.20 | |||||
| 74 | 216008602 | Knob-control |
|
- | |||||
| 75 | 5303288184 | Housing Control |
|
- | |||||
| 76 | 216241701 | Shield-light |
|
- | |||||
| 77 | 08003539 | Screw Control To Cover |
|
- | |||||
| 78 | 5300050149 | Screw Cover To Liner |
|
- | |||||
| 79 | 5303283898 | Screw, Shield |
|
- | |||||
| 80 | 09950853 | Screw, Knob |
|
- | |||||
| 86 | 5304464438 | Run Capacitor (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| *92285 | 297001500 | Support-front Rh (3) (Replaces: 08037928) |
|
$ 18.08 |
