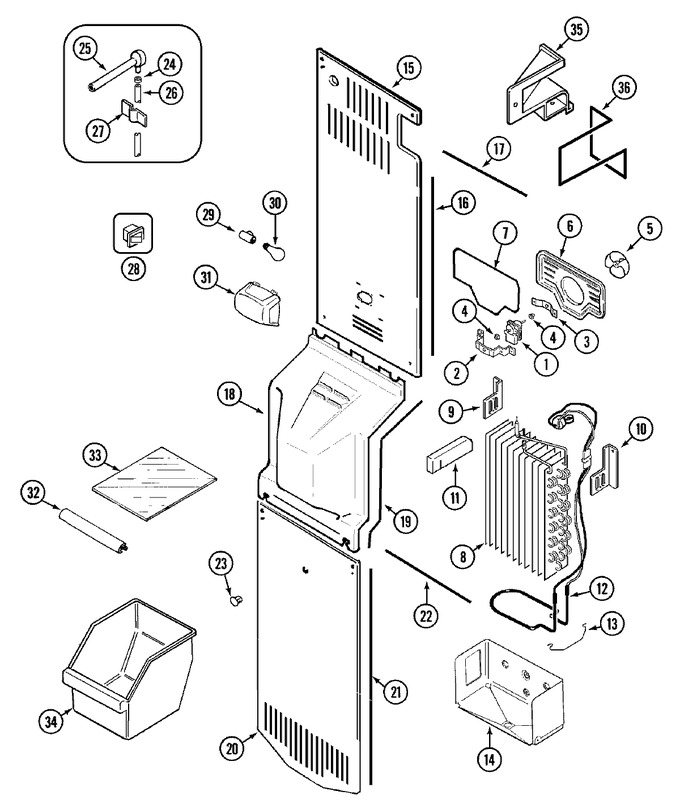

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP61004888 | Motor, Evaporator Fan (Replaces: 61004888) | 11 |
|
Immediately | $ 104.99 | |||
| 2 | 61001930 | Bracket, Evaporator Fan | 11 |
|
- | ||||
| 2 | WP489399 | Screw (Replaces: 61001885) | 11 |
|
$ 6.26 | ||||
| 3 | 61002234 | Retainer, Evaporator Fan | 11 |
|
- | ||||
| 3 | WP489399 | Screw (Replaces: 61001885) | 11 |
|
$ 6.26 | ||||
| 4 | 61002235 | Bushing, Evaporator Fan | 11 |
|
- | ||||
| 5 | 61001935 | Blade, Evaporator Fan | 11 |
|
- | ||||
| 6 | 61003380 | Shroud, Fan | 11 |
|
- | ||||
| 7 | WP854334 | Seal, Fan Shroud (Replaces: 61003381) | 11 |
|
$ 11.95 | ||||
| 8 | 12001640 | Evap/heat Exch Assy23/24/25sxs | 11 |
|
$ 297.16 | ||||
| 9 | 61003215 | Bracket, Evaporator (lt) | 11 |
|
- | ||||
| 10 | 61003216 | Bracket, Evaporator (rt) | 11 |
|
- | ||||
| 11 | 61003213 | Block, Air | 11 |
|
- | ||||
| 12 | WP61006116 | Heater & Therm. Assy., Defrost (Replaces: 61003120) | 11 |
|
Immediately | $ 65.05 | |||
| 13 | WP67005457 | Clip, Defrost Heater (Replaces: 61004152) | 11 |
|
$ 9.61 | ||||
| 14 | 61003382 | Housing, Evaporator | 11 |
|
- | ||||
| 15 | 61004424 | Screw | 11 |
|
- | ||||
| 15 | 61003383 | Cover, Coil (upr) | 11 |
|
- | ||||
| 16 | WP854334 | Seal, Upper Cover (lt) (Replaces: 61003384) | 11 |
|
$ 11.95 | ||||
| 16 | WP854334 | Seal, Upper Cover (rt) (Replaces: 61003385) | 11 |
|
$ 11.95 | ||||
| 17 | 61003386 | Seal, Upper Cover (top) | 11 |
|
- | ||||
| 18 | 61003387 | Cover, Evaporator Fan | 11 |
|
- | ||||
| 19 | WP854334 | Seal (Replaces: 61003209) | 11 |
|
$ 11.95 | ||||
| 20 | 61004424 | Screw | 11 |
|
- | ||||
| 20 | 61003388 | Cover, Coil (lwr) | 11 |
|
- | ||||
| 21 | WP854334 | Seal (Replaces: 61003212) | 11 |
|
$ 11.95 | ||||
| 22 | 61003389 | Seal, Lower Cover | 11 |
|
- | ||||
| 23 | 61001952 | Plug Button, Evap. Cover | 11 |
|
- | ||||
| 24 | WP488878 | Clamp, Water Line (Replaces: 61001161) | 11 |
|
$ 10.44 | ||||
| 25 | 67877-1 | Clip, Fill Tube | 11 |
|
$ 4.83 | ||||
| 25 | 61003253 | Grommet, Fill Tube | 11 |
|
- | ||||
| 26 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | 11 |
|
$ 11.19 | ||||
| 27 | 61004913 | Clip, Water Line (adhesive) | 11 |
|
- | ||||
| 28 | W11396033 | Switch, Light (Replaces: 61003254) | 11 |
|
Immediately | $ 33.57 | |||
| 29 | 68974-3 | Receptacle, Bulb | 11 |
|
- | ||||
| 30 | W11679940 | Bulb, Light (Replaces: 31956-1) | 11 |
|
Immediately | $ 10.17 | |||
| 31 | 61002272 | Shield, Light | 11 |
|
- | ||||
| 32 | 61003390 | Trim, Shelf (frt) | 11 |
|
- | ||||
| 33 | 61003462 | Shelf, Frz. (deep) | 11 |
|
- | ||||
| 33 | 61003461 | Shelf, Frz. (shallow) | 11 |
|
- | ||||
| 34 | 61003463 | Drawer, Frz. | 11 |
|
- | ||||
| 35 | 61003205 | Diverter, Air | 11 |
|
- | ||||
| 35 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 36 | 61003206 | Seal, Air Diverter | 11 |
|
- | ||||
| NI | 61003204 | Wire Harness, Fan & Heater | 11 |
|
- | ||||
| NI | 61003259 | Wire Harness, Frz. | 11 |
|
- |
