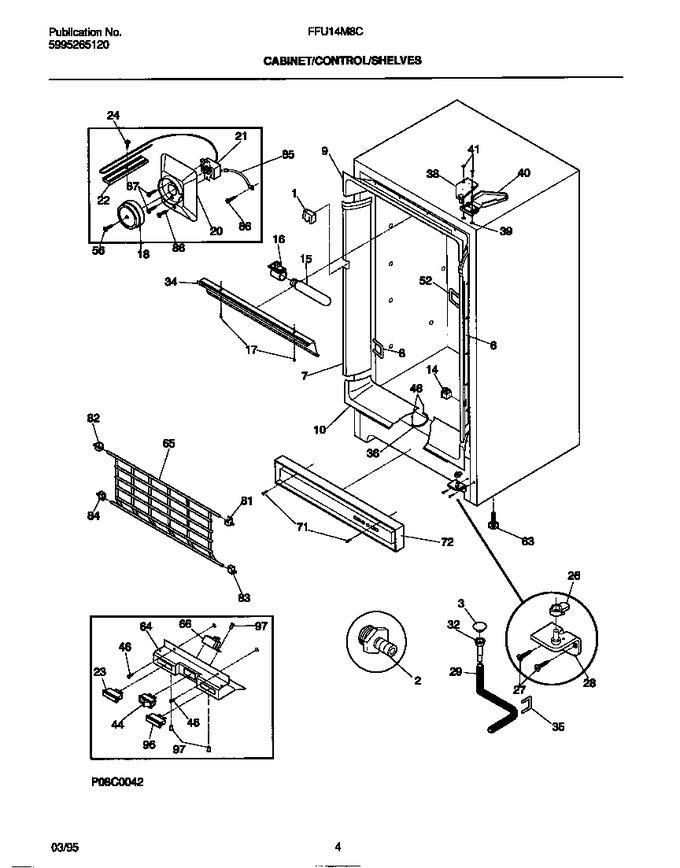

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216013600		Support, Lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	5306593887		Plug-drain, White		Appelez-nous	-
6	216107501		Breaker, Hinge Side		Appelez-nous	-
7	216108701		Breaker, Lock Side		Appelez-nous	-
8	216013700		Clip, U, Lock		Appelez-nous	-
9	216073300		Breaker Top		Appelez-nous	-
10	216073200		Breaker Bottom		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
17	5303283898		Screw, Th Type Ab, 6-20 X 3/8, Shield-light		Appelez-nous	-
18	216008602		Knob-temp Control		Appelez-nous	-
20	5303288184		Cover-control Housing		Appelez-nous	-
21	216260300		Control-temperature		Appelez-nous	-
22	08037931		Clamp, Cap Tube, Cold Control		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	5303210424		Ramp, Door		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1., Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216312303		Shield-light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
52	08037401		Retainer, Wire, Breaker				$ 2.85
56	09950853		Screw, Knob		Appelez-nous	-
63	205363701		Foot-adjustable		Appelez-nous	-
64	08016369		Bracket-alarm		Appelez-nous	-
65	216250200		Drop Front		Appelez-nous	-
66	08016367		Buzzer,alarm		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
72	216294312		Grille/kickplate		Appelez-nous	-
81	06599973		Support, Top Rh				$ 6.49
82	06599974		Support, Top Lh		Appelez-nous	-
83	06599975		Support, Bottom Rh				$ 5.99
84	06599976		Support, Bottom Lh		Appelez-nous	-
85	5300125347		Wire-ground, Temp Control		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08003539		Screw, Cover Control		Appelez-nous	-
96	08016772		Light-signal,red		Appelez-nous	-
97	5303308288		Rivet-blind		Appelez-nous	-
*37881	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
*37882	5303286749		Harness Wiring, Alarm		Appelez-nous	-
*37883	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
