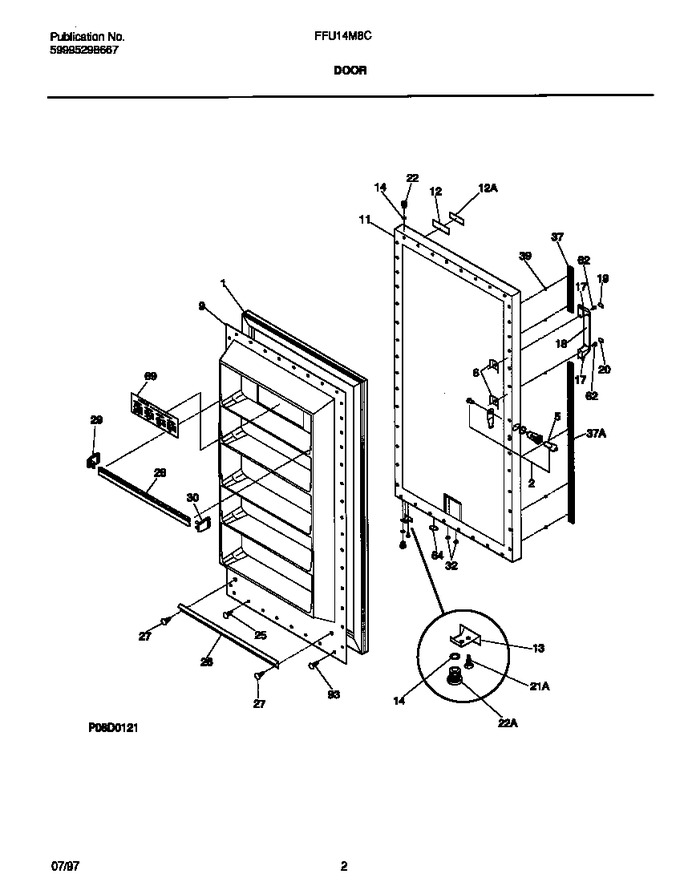

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206246		Gasket-door				$ 238.51
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
6	218990001		Screw-anchor,8-18   (Replaces: 5300158222)				$ 16.30
9	216048720		Panel-inner Door, White		Appelez-nous	-
11	5303925395		Panel-outer Door Assy, W\foam Insul, White		Appelez-nous	-
12	216315100		Nameplate		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
17	216087400		End Cap-white (2)				$ 43.81
18	216087700		Handle, White		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209000		Insert-handle,bottom		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303210403		Bearing		Appelez-nous	-
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	5303300817		Gasket-secondary		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
28	216370800		Rack-shelf, Wide, White		Appelez-nous	-
29	216334300		End Cap-wide, Lh		Appelez-nous	-
30	216334200		End Cap-wide, Rh				$ 39.80
32	5309950074		Valve-breather, Door				$ 12.48
37	216370700		Trim-handle,upper		Appelez-nous	-
37	216087600		Trim-handle,bottom		Appelez-nous	-
39	08016809		Fastener,door Strip		Appelez-nous	-
62	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
64	216403700		Plug-button, Base Door				$ 58.12
69	216485600		Label-frozen Food		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
