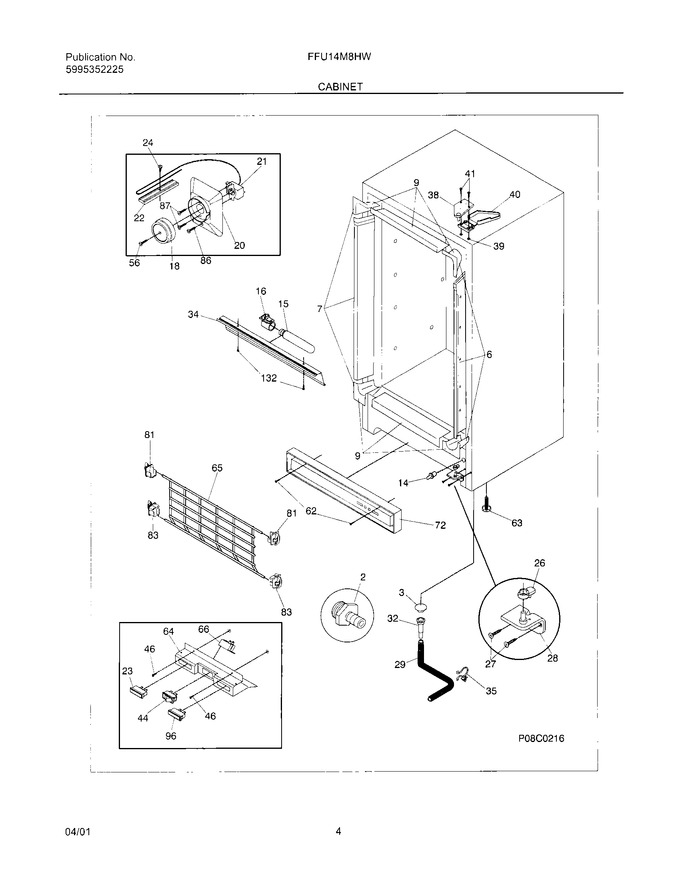

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	216269500		Adapter, Drain				$ 14.81
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
6	216604300		Breaker Kit W/corners				$ 163.64
7	216603800		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603400		Breaker Kit W/corners,28`` ,top Or Bottom		Appelez-nous	-
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Bulb-light,40w ,130v   (Replaces: 216608600)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
18	216707200		Knob-control Cold				$ 44.10
20	216707300		Cover-control Housing		Appelez-nous	-
21	216715600		Control-temperature		Appelez-nous	-
22	08037931		Clamp, Cap Tube, Cold Control		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216557500		Shield-light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
56	09950853		Screw, Knob		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
64	08016369		Bracket		Appelez-nous	-
65	216447600		Drop Front		Appelez-nous	-
66	216713700		Buzzer,alarm				$ 74.60
72	216591212		Grille/kickplate				$ 58.20
81	216571000		Support-drop Front,top				$ 33.55
83	216571100		Support-drop Front,btm		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
96	08016772		Light-signal,red		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216539100		Wiring Harness,alarm		Appelez-nous	-
