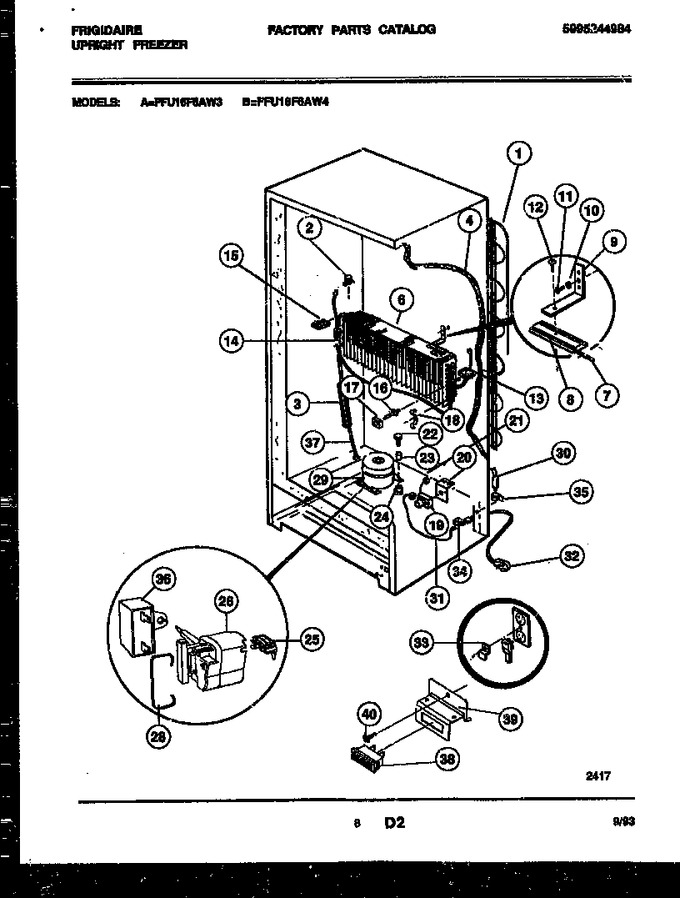

05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	216254500		Switch-termination				$ 91.67
3	5303208489		Sleeve, Tubing (2)		Appelez-nous	-
4	09948773		Insulation				$ 12.60
5	06594629		Grommet		Appelez-nous	-
6	216195900		Evaporator				$ 246.91
7	5308037932		Sleeve, Capillary Tube		Appelez-nous	-
8	05878562		Clamp		Appelez-nous	-
9	06594601		Bracket, Control				$ 17.64
10	5300095480		Washer		Appelez-nous	-
11	08009412		Screw		Appelez-nous	-
12	5300052943		Screw, Clamp				$ 5.30
13	06599531		Air Seal, Rh		Appelez-nous	-
14	216254600		Heater-defrost				$ 259.53
15	3017674		Air Seal, Lh		Appelez-nous	-
16	06599544		Support, Evaporator		Appelez-nous	-
17	08013198		Spacer, Support		Appelez-nous	-
18	06599536		Clip, Heater		Appelez-nous	-
19	5308037967		Timer, Defrost		Appelez-nous	-
20	08016580		Bracket, Timer		Appelez-nous	-
21	216858001		Screw, Bracket   (Replaces: 5303161215)			Immediately	$ 10.85
22	08002679		Screw, Compressor		Appelez-nous	-
23	5306594529		Sleeve-compressor				$ 10.34
24	216498900		Grommet (4)   (Replaces: 5308002681)				$ 13.01
25	216100100		Overload		Appelez-nous	-
26	216008900		Relay		Appelez-nous	-
28	215012000		Clamp				$ 2.63
29	216100200		Compressor		Appelez-nous	-
30	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
31	216267700		Harness		Appelez-nous	-
32	5300086065		Power Cord		Appelez-nous	-
33	08016777		Retainer Power Cord		Appelez-nous	-
34	5303212614		Clip Harness				$ 2.88
35	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
36	5304464438		Run Capacitor   (Replaces: 216236200)			Immediately	$ 35.38
37	5303272332		Heat Exchanger		Appelez-nous	-
38	06594648		Signal Light, Amber		Appelez-nous	-
39	216009101		Bracket, Signal Light		Appelez-nous	-
40	08037851		Screw				$ 3.57
