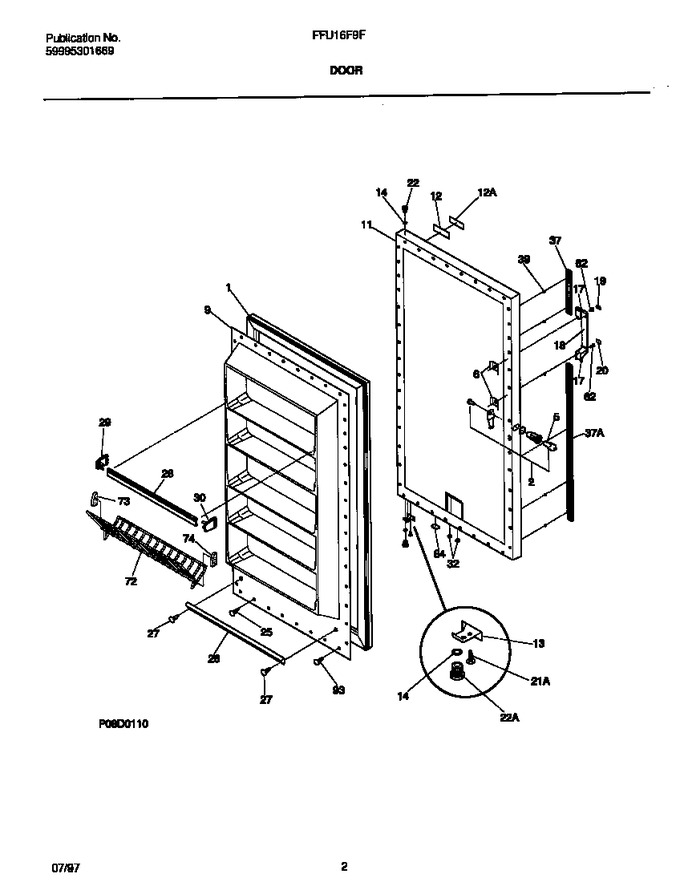

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206251		Gasket Door				$ 303.33
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
6	218990001		Screw-anchor,8-18   (Replaces: 5300158222)				$ 16.30
9	216012910		Panel-inner Door, White		Appelez-nous	-
11	5303925404		Panel-outer Door Assy, W/foam Insul, White		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	216315100		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
17	216087400		End Cap-white (2)				$ 43.81
18	216518000		Handle,center		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209001		Insert,handle Bottom		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	216443600		Bearing				$ 0.68
22	297006800		Bearing-hinge, Btm   (Replaces: 216503200)				$ 12.29
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
28	216371700		Rack-shelf, Wide, White		Appelez-nous	-
29	216334300		End Cap-wide, Lh		Appelez-nous	-
30	216334200		End Cap-wide, Rh				$ 39.80
32	5309950074		Valve-breather, Door				$ 12.48
37	216087600		Trim-handle,bottom		Appelez-nous	-
37	216211100		Trim-handle, Upper		Appelez-nous	-
39	08016809		Fastener,door Strip		Appelez-nous	-
64	216403700		Plug-button, Base Door				$ 58.12
72	216480300		Shelf,tilt Out ,wire		Appelez-nous	-
73	216480100		Support L.h.		Appelez-nous	-
74	216480200		Support R.h.		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*65880	216485600		Label-frozen Food		Appelez-nous	-
