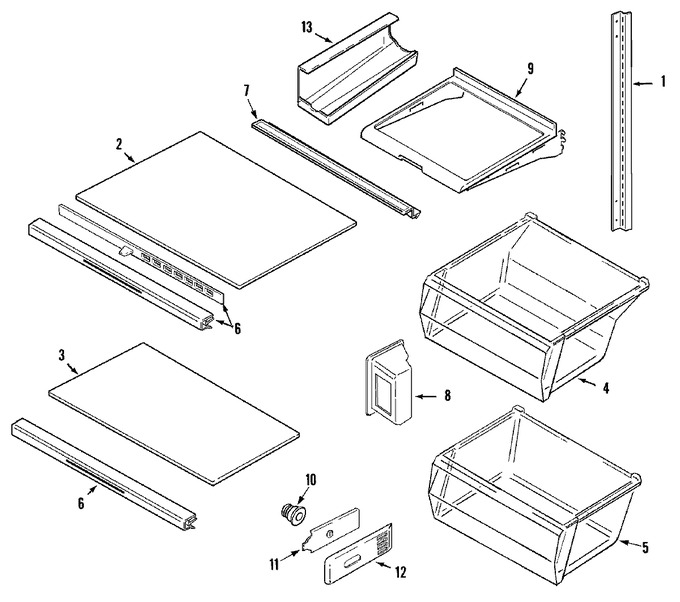

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67006908		Screw   (Replaces: 400022-1)	10		Immediately	$ 7.16
1	61003240		Rail, Shelf Support	10	Appelez-nous	-
2	61003241		Glass, Crisper Shelf	10			$ 91.34
3	61003157		Glass, Meat Shelf	10	Appelez-nous	-
4	61003459		Pan, Crisper	10	Appelez-nous	-
5	61003460		Pan, Meat	10	Appelez-nous	-
6	61003248		Trim, Shelf (crisper-w/slide)	10	Appelez-nous	-
6	61003162		Trim	10	Appelez-nous	-
7	61003161		Seal, Crisper Shelf (rear)	10	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61003164)	10			$ 80.27
9	61003494		Shelf, Spill Proof	10	Appelez-nous	-
10	53726-2		Tunnel, Air (meat)	10	Appelez-nous	-
11	61003249		Slide, Control (meat)	10	Appelez-nous	-
12	61003250		Retainer, Control Slide	10	Appelez-nous	-
13	61002657		Holder, Beverage	10	Appelez-nous	-
