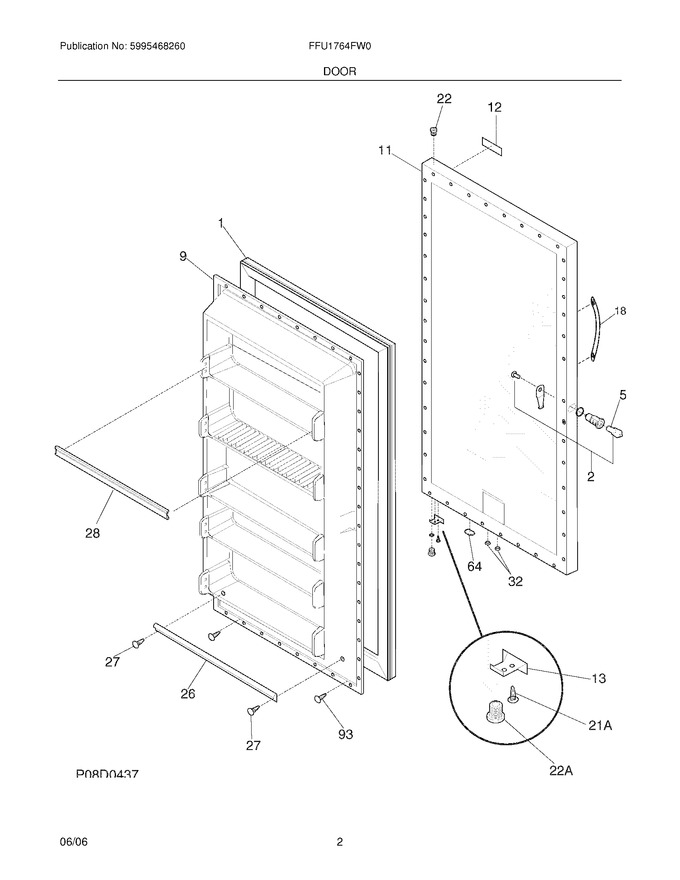

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507200 | Gasket-door,white (Replaces: 216522309) |
|
Immediately | $ 188.19 | ||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 9 | 216527816 | Panel-inner Door,frzr |
|
$ 257.51 | |||||
| 11 | 216526524 | Panel-outer Door,white |
|
- | |||||
| 12 | 216947300 | Nameplate |
|
$ 15.84 | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 18 | 216921200 | Handle,white |
|
- | |||||
| 22 | 216970802 | Bearing,hinge W/o`ring ,top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 28 | 216951600 | Rack-door,(3) |
|
$ 69.40 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21A | 08005520 | Screw,door Stop Mtg ,4.0 X 0.7-19.7 ,flat Hd,metric |
|
- | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 12.29 | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 | ||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 216932500 | Nut,flange Locking ,handle |
|
- |
