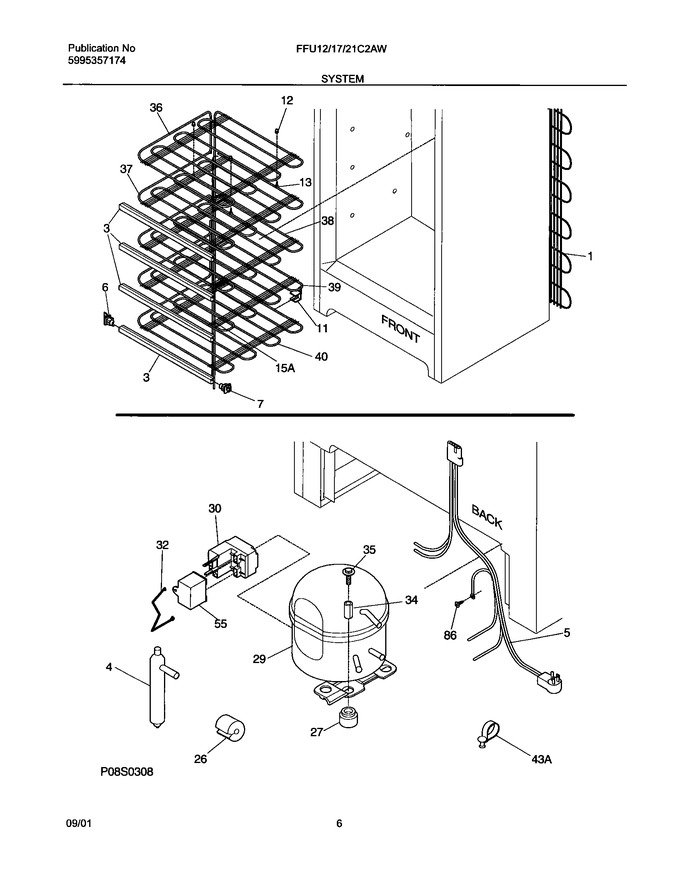

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509723		Trim-shelf,decorated ,evap   (Replaces: 216743100)				$ 31.81
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
26	216511900		Spacer Tube, (3)		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
30	5304491583		Controller-regulator Lp   (Replaces: 216649300)				$ 99.23
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
15A	216401400		Heat Exchanger				$ 297.89
43A	216629700		Clip-harness		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F29	5304511983		Compressor,w/o Electricals   (Replaces: 216784400)				$ 671.86
F36	297234500		Grid-top Evaporator   (Replaces: 216070500)				$ 357.92
F37	297234500		Shelf-top Evaporator   (Replaces: 216070600)				$ 357.92
F38	297234500		Shelf-middle Evaporator   (Replaces: 216070700)				$ 357.92
F40	297234500		Shelf-bottom Evaporator   (Replaces: 216070800)				$ 357.92
F5	216793400		Harness-ext,main		Appelez-nous	-
F55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
NI	216502500		Sleeve-tube Insert				$ 10.85
