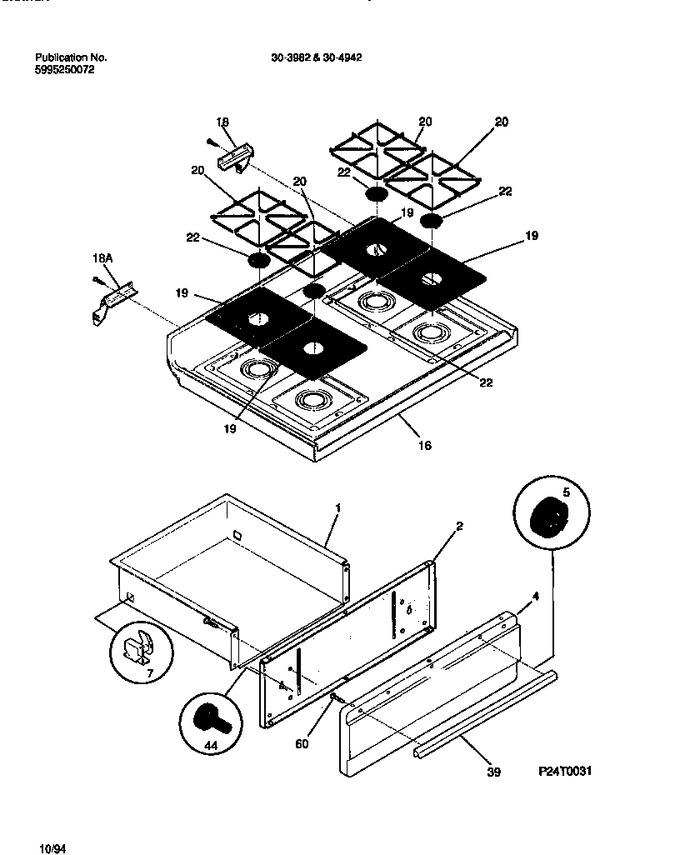

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303301547		Main Top, Almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316011401		Pan-burner				$ 20.58
20	318228310		Grate (4)   (Replaces: 5303269632)			Immediately	$ 22.91
22	316010901		Cap-burner, Black, (4)				$ 69.01
39	316019502		Handle-drawer, Almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*23402	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
16A	5303271891		Gusset-top Mtg, Rh (non-illustrated)		Appelez-nous	-
16B	5303271892		Gusset-top Mtg, Lh (non-illustrated)		Appelez-nous	-
18A	5303273063		Hinge-main Top (lh)				$ 48.41
18B	5303288567		Screw, 8-18 X 3/8, (4) (non-illustrated)		Appelez-nous	-
4A	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated)		Appelez-nous	-
