SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

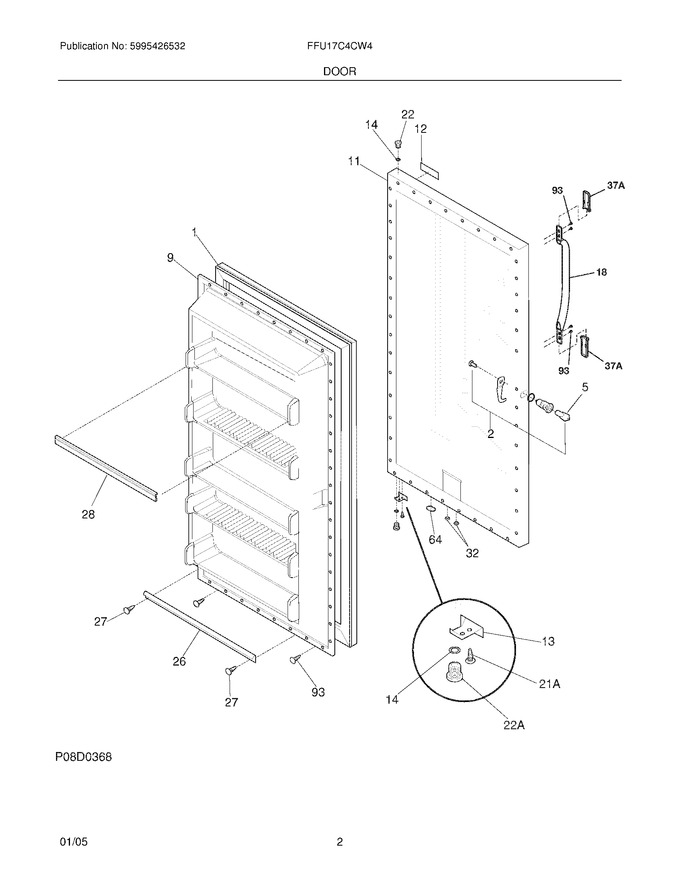

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 188.19
2	5303925107		Lock Assy		Appelez-nous	-
9	216527816		Panel-inner Door,frzr				$ 257.51
11	216526523		Panel-outer Door,white		Appelez-nous	-
12	216892800		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
22	5303925197		Bearing,hinge ,top				$ 23.73
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216951600		Rack-door,(5)				$ 69.40
32	5309950074		Valve,breather ,door Base				$ 12.48
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
21A	08005520		Screw,door Stop Mtg ,4.0 X 0.7-19.7 ,flat Hd,metric		Appelez-nous	-
22A	297006800		Bearing,hinge ,bottom   (Replaces: 216503200)				$ 12.29
37A	215870619		Trim-handle, 2.47``, White, W/chrome Band				$ 72.72
37A	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57

    View Diagram in Separate Window       Print Part List
