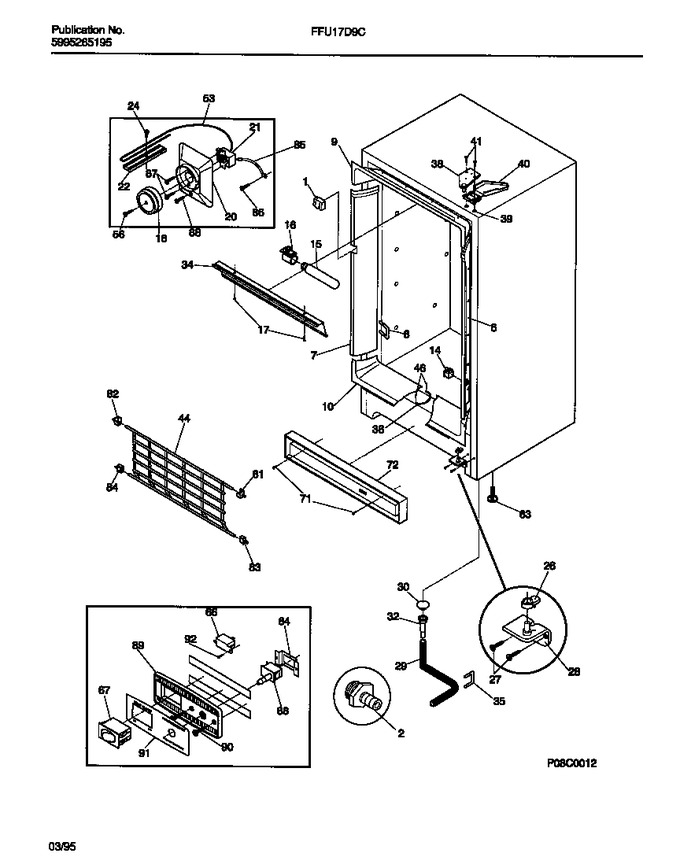

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216013600 | Support, Lock |
|
- | |||||
| 2 | 216269500 | Adapter, Drain |
|
$ 14.81 | |||||
| 6 | 216107501 | Breaker, Hinge Side |
|
- | |||||
| 7 | 216107601 | Breaker, Lock Side |
|
- | |||||
| 8 | 216013700 | Clip |
|
- | |||||
| 9 | 216085900 | Breaker, Top |
|
- | |||||
| 10 | 216085800 | Breaker, Bottom |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 16 | 5300136117 | Socket, Light/lamp |
|
$ 52.46 | |||||
| 17 | 5303283898 | Screw, Th Type Ab, 6-20 X 3/8, Shield-light |
|
- | |||||
| 18 | 216008602 | Knob-temp Control |
|
- | |||||
| 20 | 5303288184 | Cover-control Housing |
|
- | |||||
| 21 | 216150400 | Control-temperature |
|
- | |||||
| 22 | 08037931 | Clamp-capillary |
|
- | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 26 | 5303271073 | Bearing-hinge, Closer Ramp |
|
$ 37.54 | |||||
| 27 | 154518001 | Screw-hinge, Cr, 1/4-20 X 1.000, Btm (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 29 | 5304512272 | Hose Drain (Replaces: 216313500) |
|
Immediately | $ 15.90 | ||||
| 30 | 216297600 | Plug-drain |
|
- | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216312205 | Shield-light |
|
- | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 22.42 | |||||
| 36 | 06594651 | Wire, Ground |
|
- | |||||
| 38 | 5303925086 | Hinge-upper |
|
- | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 40 | 5303212912 | Cover, Hinge |
|
- | |||||
| 41 | 5303212937 | Screw-top Hinge |
|
- | |||||
| 44 | 216250300 | Drop Front (2) |
|
- | |||||
| 46 | 08037851 | Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness |
|
$ 3.57 | |||||
| 53 | 5303916855 | Sleeve, Plastic Tube, Temp Control |
|
$ 60.96 | |||||
| 56 | 09950853 | Screw, Knob |
|
- | |||||
| 63 | 205363701 | Foot-adjustable |
|
- | |||||
| 64 | 216009200 | Bracket-dfr Switch |
|
- | |||||
| 66 | 5303212697 | Buzzer,alarm |
|
- | |||||
| 67 | 5303212703 | Switch-rocker,spst |
|
- | |||||
| 71 | 5303302714 | Screw, 8, 18 X 3/4, (2) |
|
- | |||||
| 72 | 5303272325 | Grille/kickplate |
|
- | |||||
| 81 | 06599973 | Support, Top Rh |
|
$ 6.49 | |||||
| 82 | 06599974 | Support, Top Lh |
|
- | |||||
| 83 | 06599975 | Support, Bottom Rh |
|
$ 5.99 | |||||
| 84 | 06599976 | Support, Bottom Lh |
|
- | |||||
| 85 | 5300125347 | Wire-ground, Temp Control |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 87 | 08003539 | Screw, Cover Control |
|
- | |||||
| 88 | 5303210215 | Switch-defrost (not Illustrated) |
|
- | |||||
| 89 | 216364004 | Bezel-nameplate |
|
- | |||||
| 90 | 5303297123 | Screw, Th, 8-32 Unc 2 X 1/2 |
|
- | |||||
| 91 | 216372000 | Insert-bezel |
|
- | |||||
| 92 | 5303272319 | Screw, Hex Wash Hd, 8, 32 X 7/16, Buzzer |
|
- | |||||
| *26361 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
