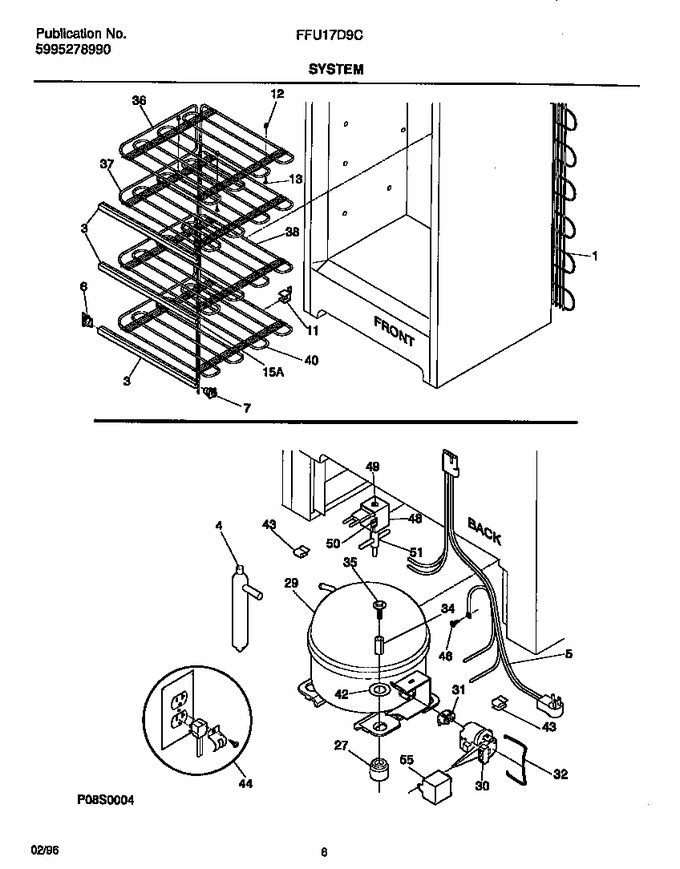

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
3	216097900		Trim, Shelf, Evaporator		Appelez-nous	-
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216234700		Harness-wire, Electrical, Pwr Cord		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216225600		Support-rear Shelf		Appelez-nous	-
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
15	216401400		Heat Exchanger				$ 297.89
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304511983		Compressor   (Replaces: 5303925357)				$ 671.86
30	216008900		Starter-ptc		Appelez-nous	-
31	216100104		Overload Protector		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	297234500		Grid-top Evaporator   (Replaces: 216070500)				$ 357.92
37	297234500		Shelf-top Evaporator   (Replaces: 216211800)				$ 357.92
38	297234500		Shelf-middle Evaporator   (Replaces: 216070700)				$ 357.92
40	297234500		Shelf-bottom Evaporator   (Replaces: 216070800)				$ 357.92
42	5303298960		Spacer, Compressor		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	5303297422		Wire-ground, Solenoid		Appelez-nous	-
51	5303210219		Valve-formed		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
*71284	5303208622		Clip Grounding		Appelez-nous	-
