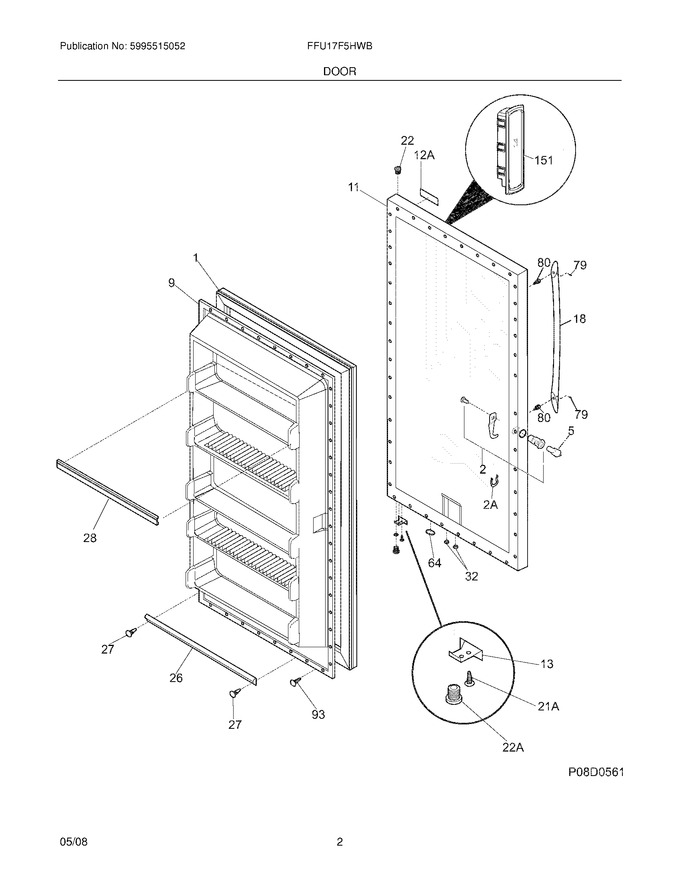

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507200 | Gasket-door,white (Replaces: 216522309) |
|
Immediately | $ 188.19 | ||||
| 5 | 297147700 | Key,lock |
|
Immediately | $ 7.57 | ||||
| 9 | 216527816 | Panel-inner Door,frzr |
|
$ 257.51 | |||||
| 11 | 297245201 | Panel-outer Door,white |
|
- | |||||
| 13 | 297148400 | Door Stop |
|
- | |||||
| 18 | 297422020 | Handle-door,white (Replaces: 297233800) |
|
$ 99.77 | |||||
| 22 | 216970802 | Bearing,hinge W/o`ring ,top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 28 | 216951600 | Rack-door,(5) |
|
$ 69.40 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 79 | 218755402 | Screw-set 10-32 X 0.5`` |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 12A | 241808601 | Label-nameplate |
|
$ 12.69 | |||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 14.46 | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 12.29 | |||||
| 2A | 297213300 | Clip,spring |
|
$ 10.17 | |||||
| F151 | 297370600 | Control-electronic,assy ,white ,115v (Replaces: 297241800) |
|
Immediately | $ 189.59 | ||||
| F2 | 297318600 | Lock Assy (Replaces: 297213400) |
|
$ 36.87 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 240537301 | Nut-anchor,door Hdl Screw |
|
$ 11.34 |
