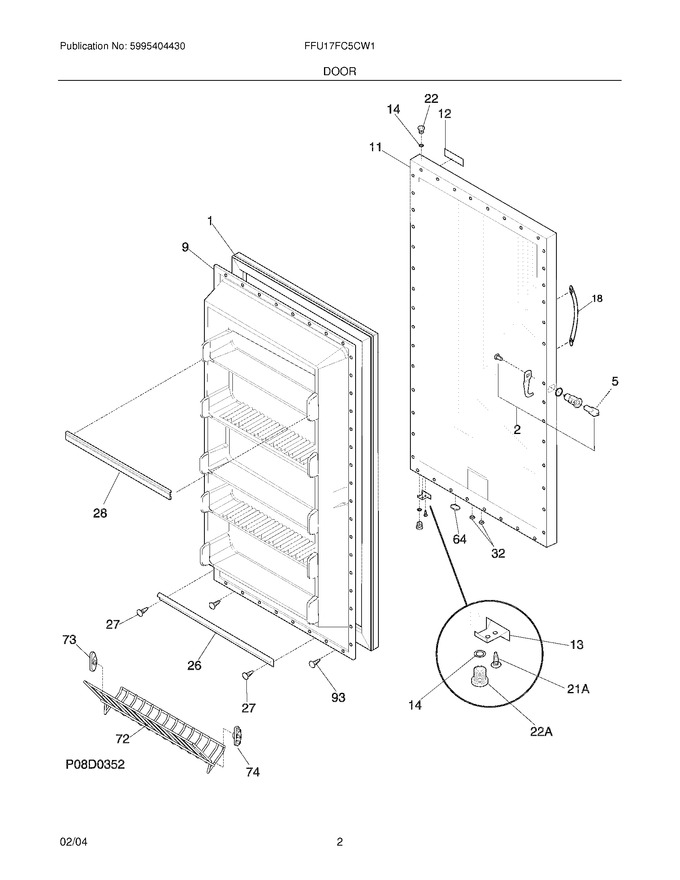

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 188.19
2	5303925107		Lock Assy		Appelez-nous	-
9	216527816		Panel-inner Door,frzr				$ 257.51
11	216526524		Panel-outer Door,white		Appelez-nous	-
12	216892800		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216921200		Handle,white		Appelez-nous	-
22	5303925197		Bearing,hinge ,top				$ 23.73
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216951600		Rack-door,(4) ,wide   (Replaces: 216807700)				$ 69.40
32	5309950074		Valve,breather ,door Base				$ 12.48
39	5303294372		Nut-insert,1/4-20 Unc ,hinge				$ 43.68
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	216514100		Shelf,tilt Out ,wire				$ 123.80
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
21A	08005520		Screw-door Stop		Appelez-nous	-
22A	297006800		Bearing,hinge ,bottom   (Replaces: 216503200)				$ 12.29
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	216932500		Nut,flange Locking ,handle		Appelez-nous	-
