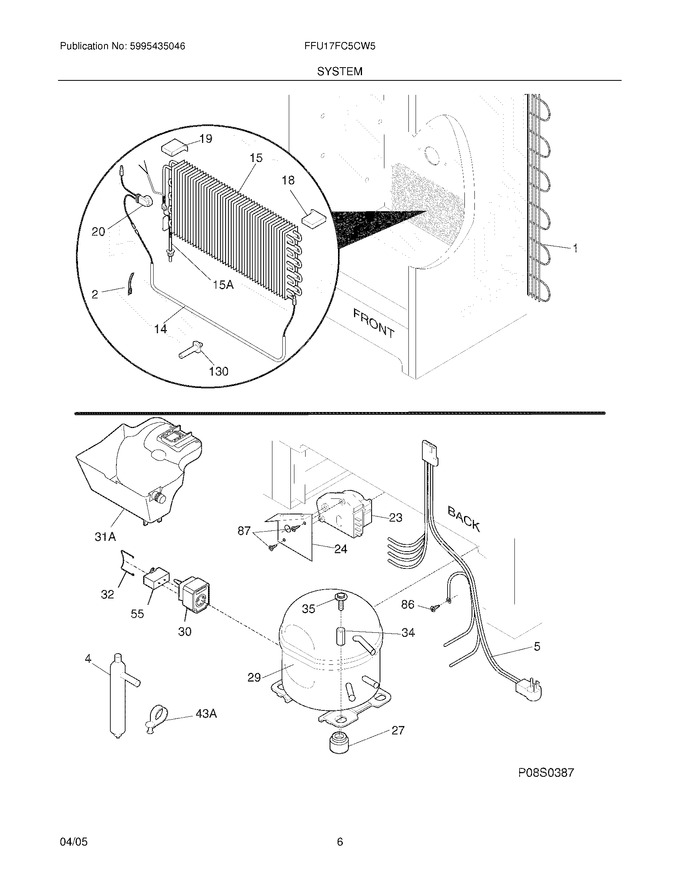

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 27.52
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304478809		Compressor,kit,w/grommets ,& Welded Clip   (Replaces: 297002900)			Immediately	$ 584.96
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
130	216486800		Support,evaporator Mtg		Appelez-nous	-
15A	216783200		Heat Exchanger,suct/cap Tube			Immediately	$ 91.09
31A	216994102		Pan-drain   (Replaces: 216994100)				$ 30.53
43A	216629700		Clip		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F14	216730700		Heater-defrost			Immediately	$ 116.44
F15	297414901		Evaporator   (Replaces: 216737300)			Immediately	$ 171.34
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F30	5304491585		Controller   (Replaces: 216649315)				$ 95.68
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216895800		Harness-main				$ 231.95
NI	216502500		Sleeve,suction Line				$ 10.85
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-
